KIHA-40 DMUs – Multiple Available
Listing Status: Available

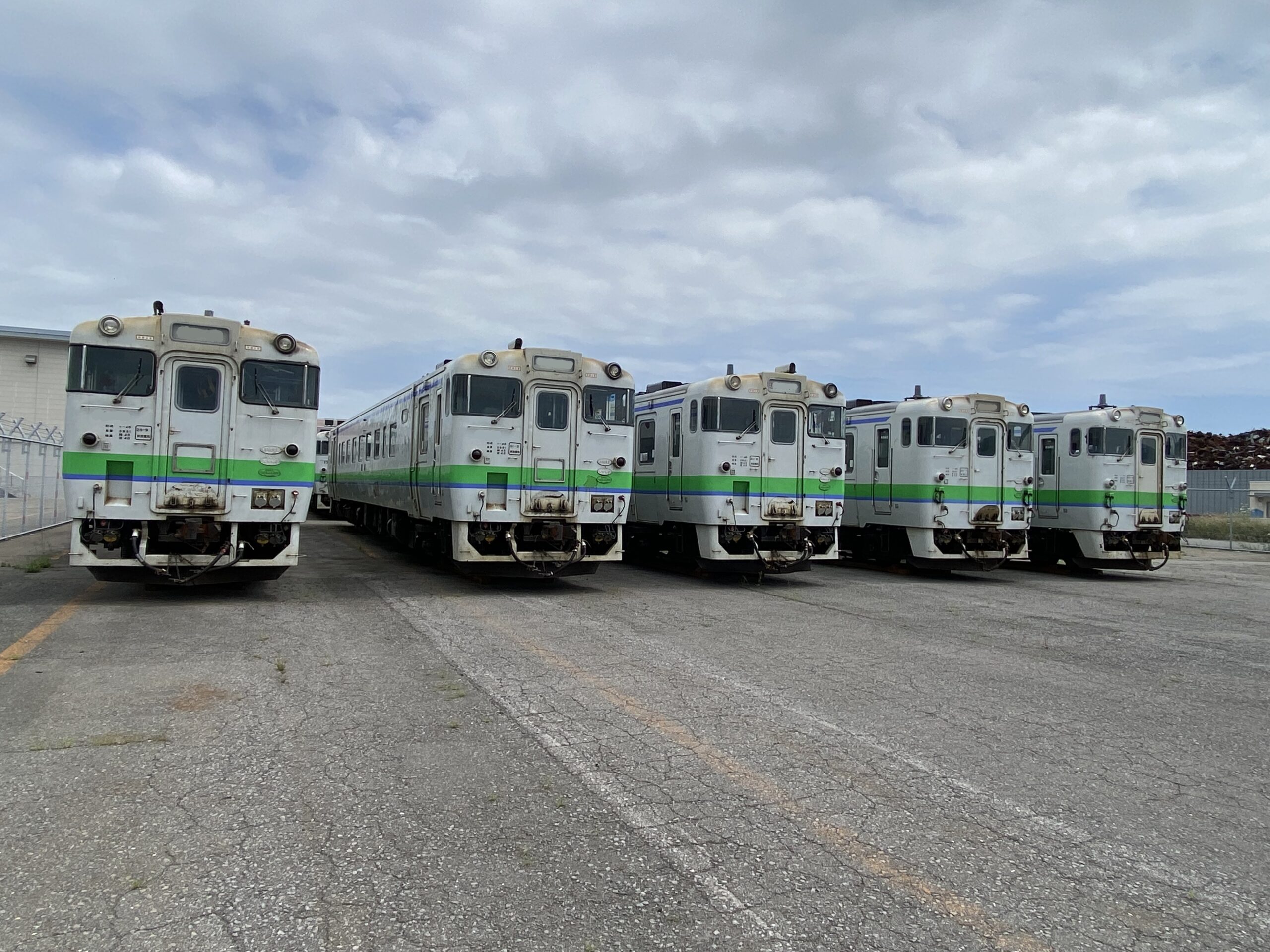

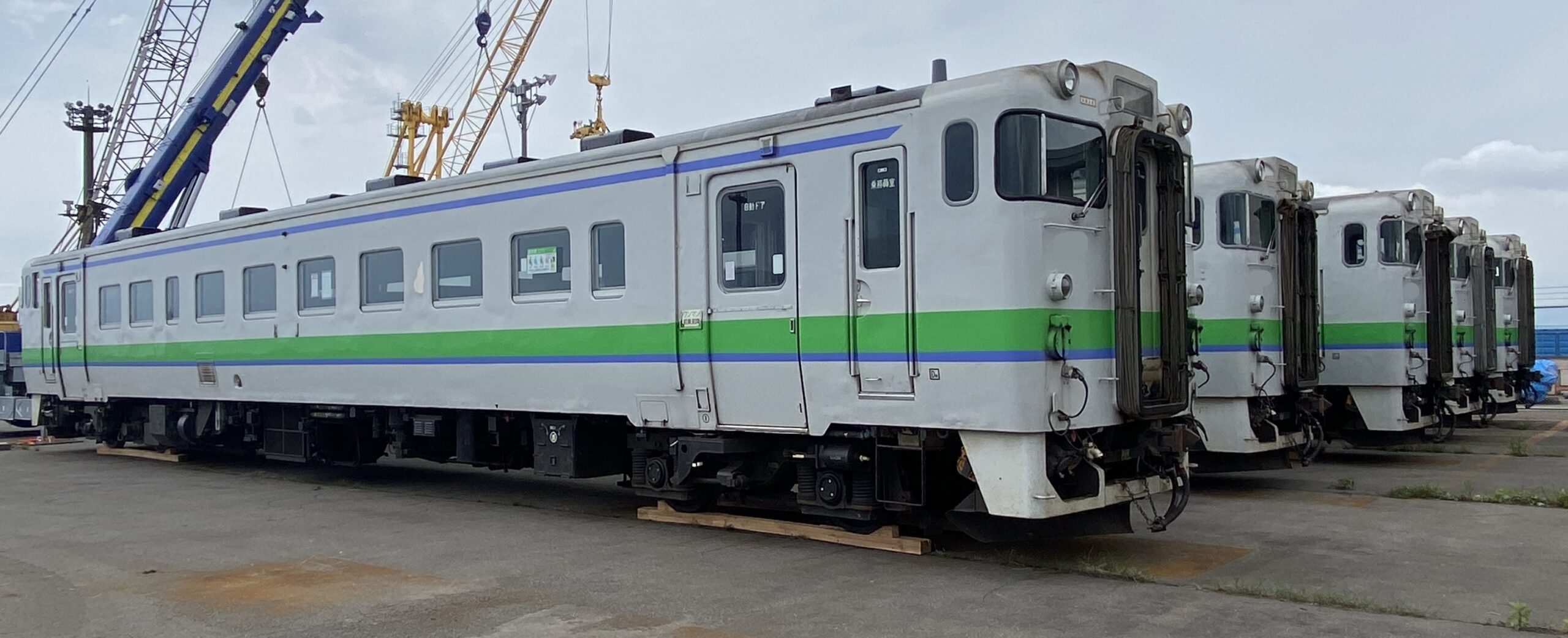

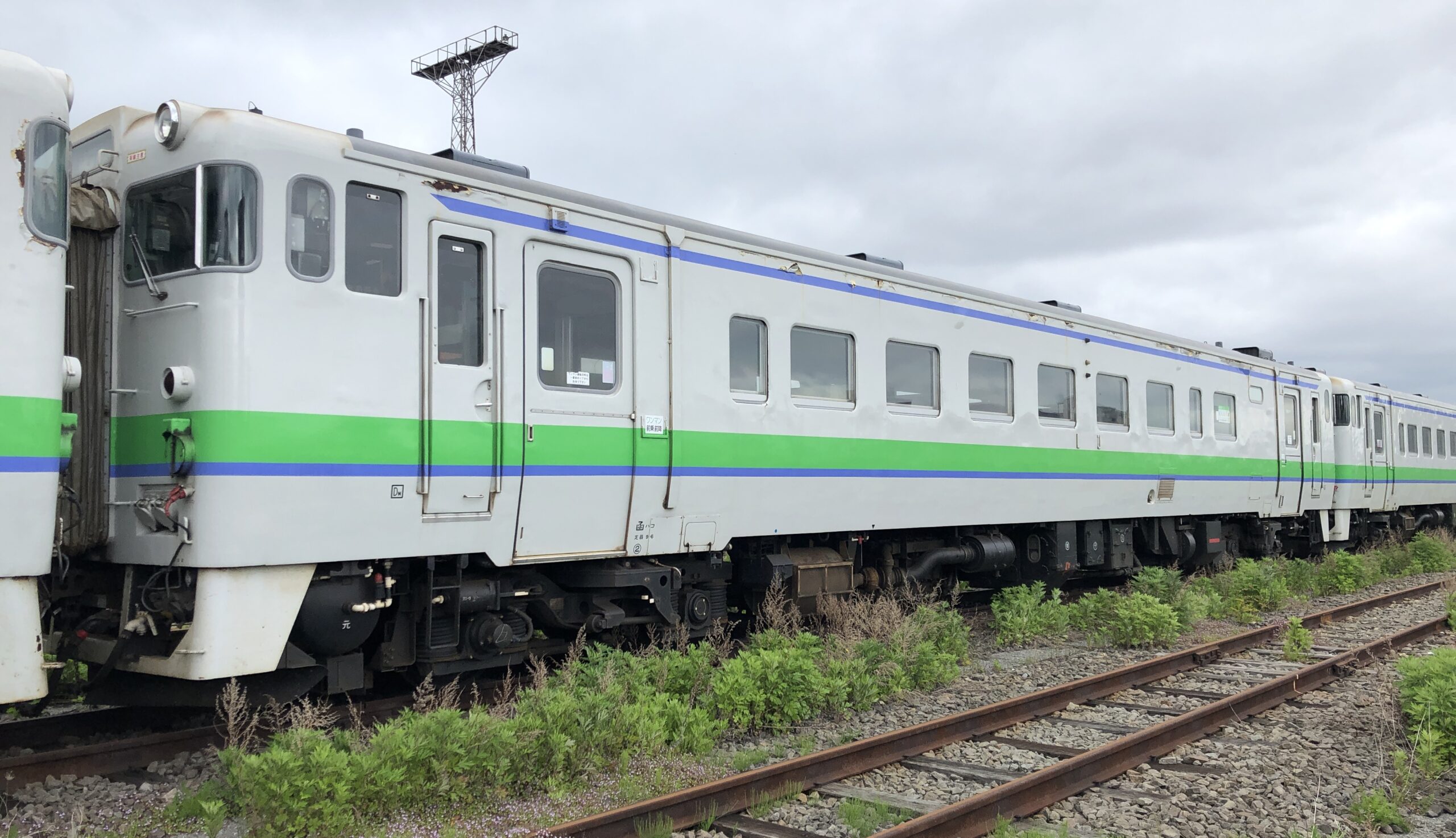

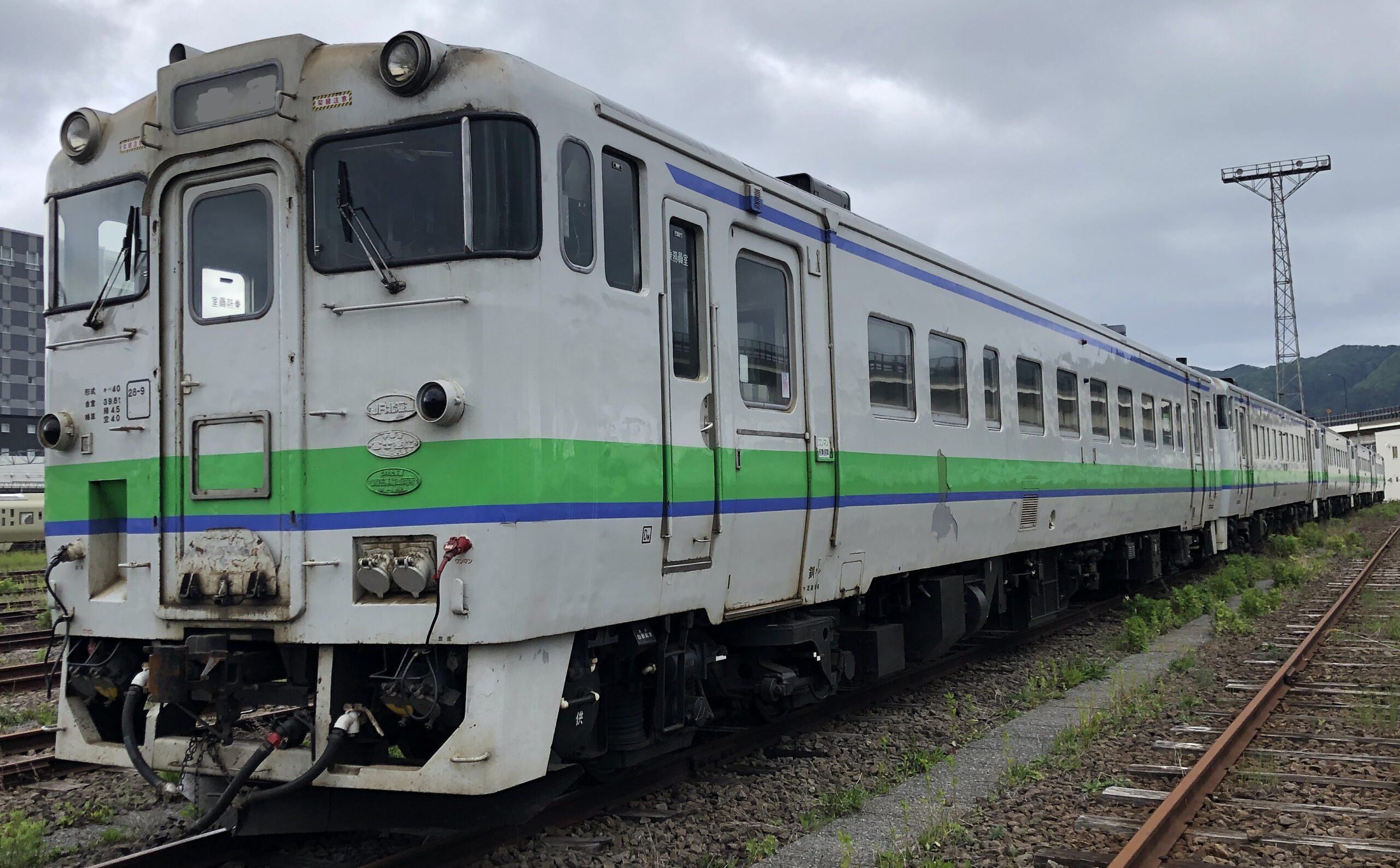

KIHA-40 Series Diesel Multiple Units, with 10 units available.
Technical specifications:
• Track gauge: 1,067 mm
• Length: 21,300 mm
• Width: 2,930 mm
• Height: 4,055 mm; 3,650 mm after removal of air conditioning
• Engine: DMF-14 HZ, 1 x 350 HP @ 2,000 rpm
• Generator: 4 kVA (DC 24 V)
• Transmission: C-DW 14A x 1
• Maximum allowed axle load: 12.5 ton
• Build year: 1989
• Negotiable gradient: 1:25

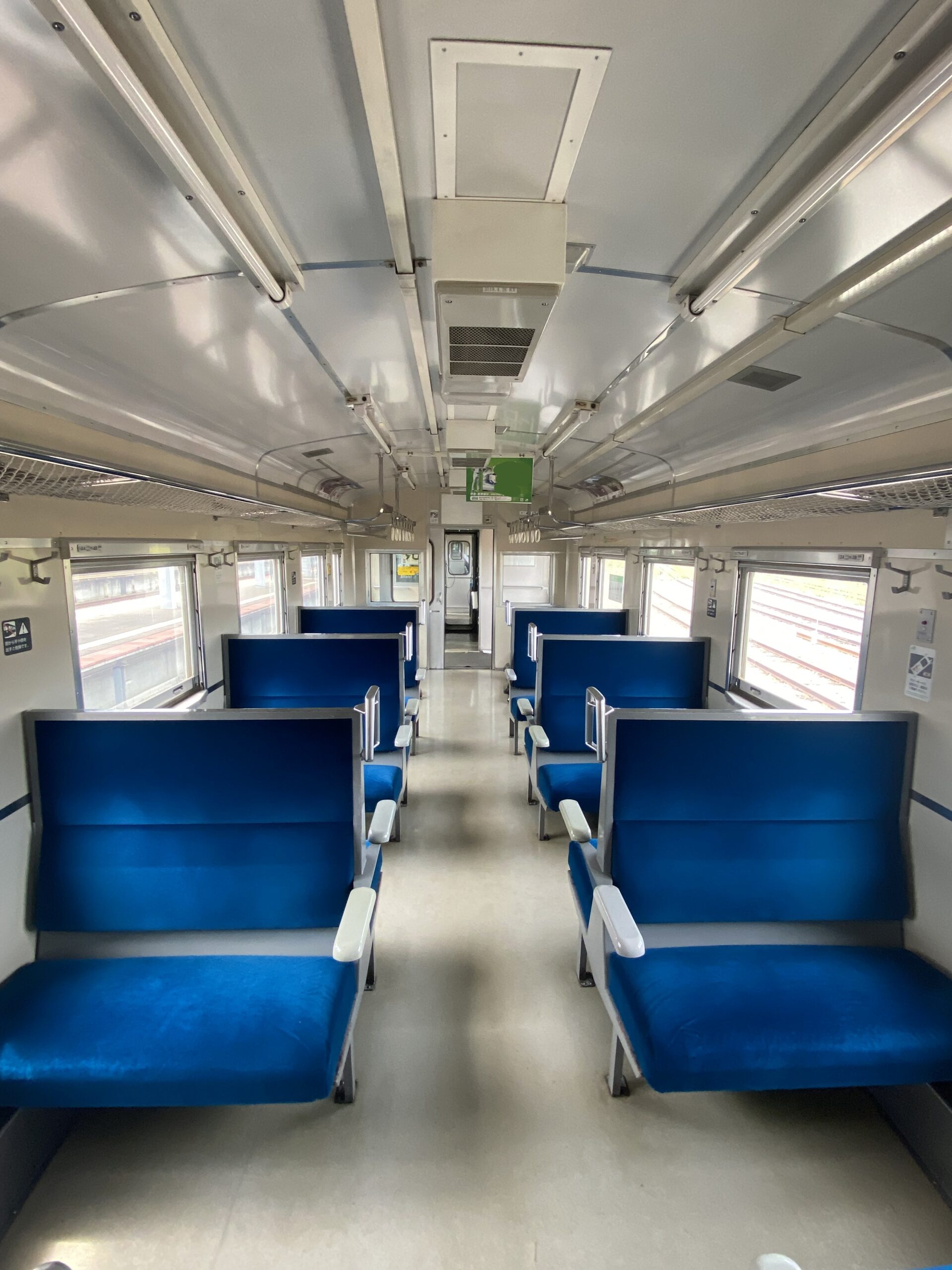

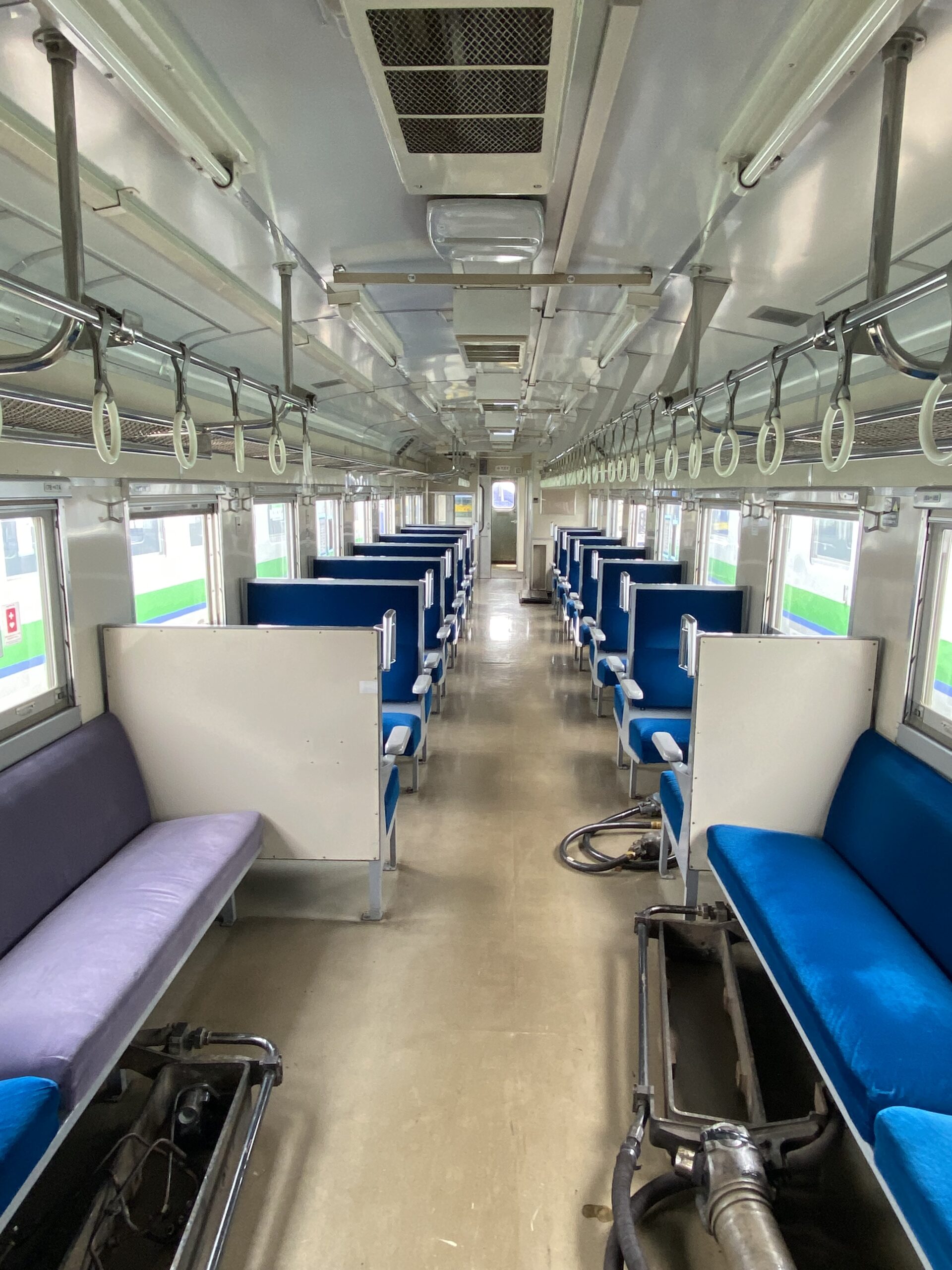

• Passenger capacity: 122 total, comprising 66 seated and 56 standing
• Operating speed: 95 km/h
• Weight: 38.8 ton
• Bogie type: DT 22D / TR 51C
• Wheelbase: 2,100 mm each bogie
• Distance between centre plates: 14,400 mm

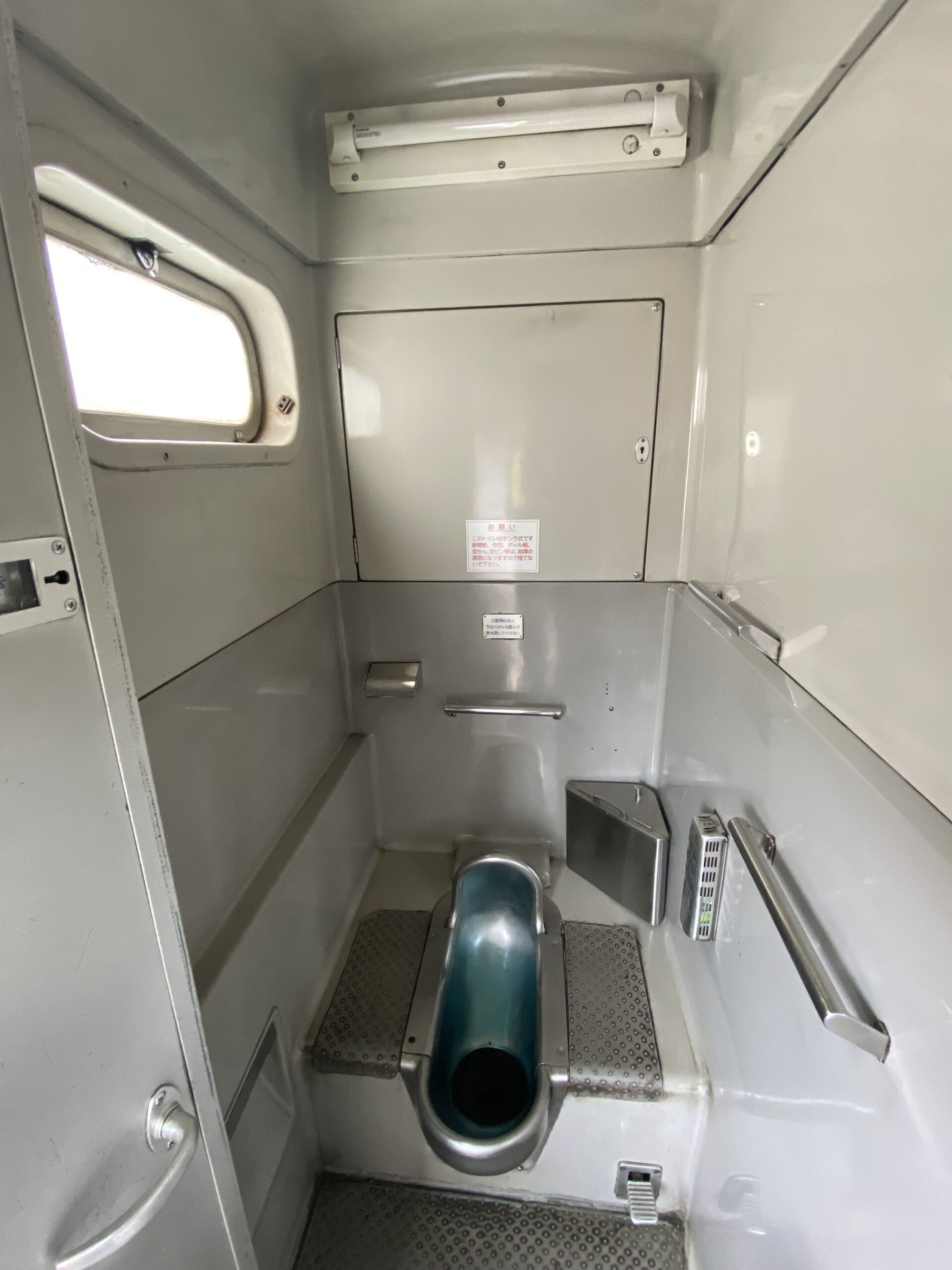

• Toilet: 1
• Air conditioning: AU-7 111D (8,000 kcal x 2)

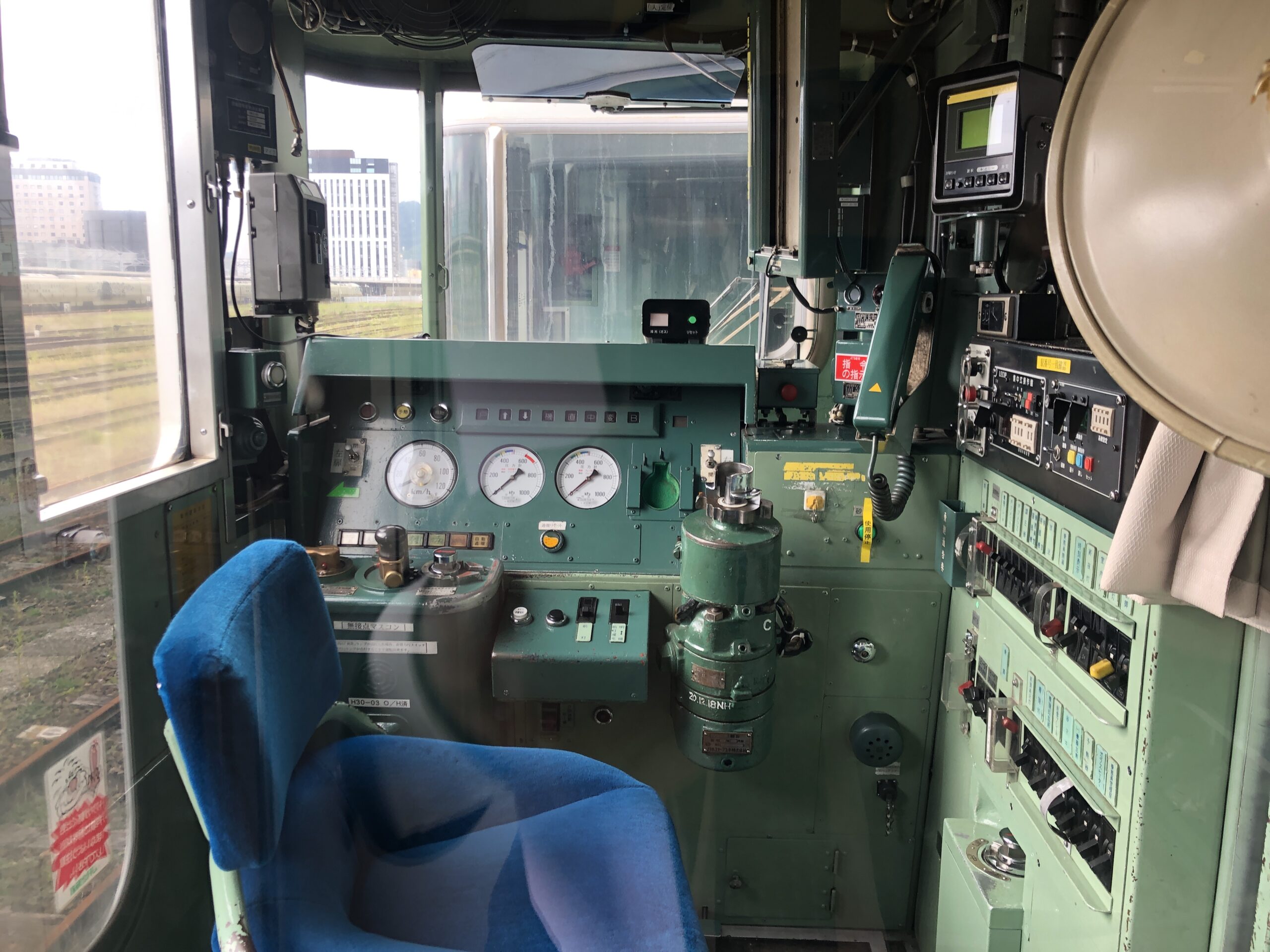

• Driver cabs: Twin cabs
Equipment inspection is available by arrangement.
