DC Class G12A Diesel-Electric Locomotives
Listing Status: Available
OEM: Builder: GM Canada and Rebuilt By: Clyde Engineering
Track Gauge: 1067 mm
Model: DC
Quantity Available: 2
Equipment Condition: Used – Good Condition

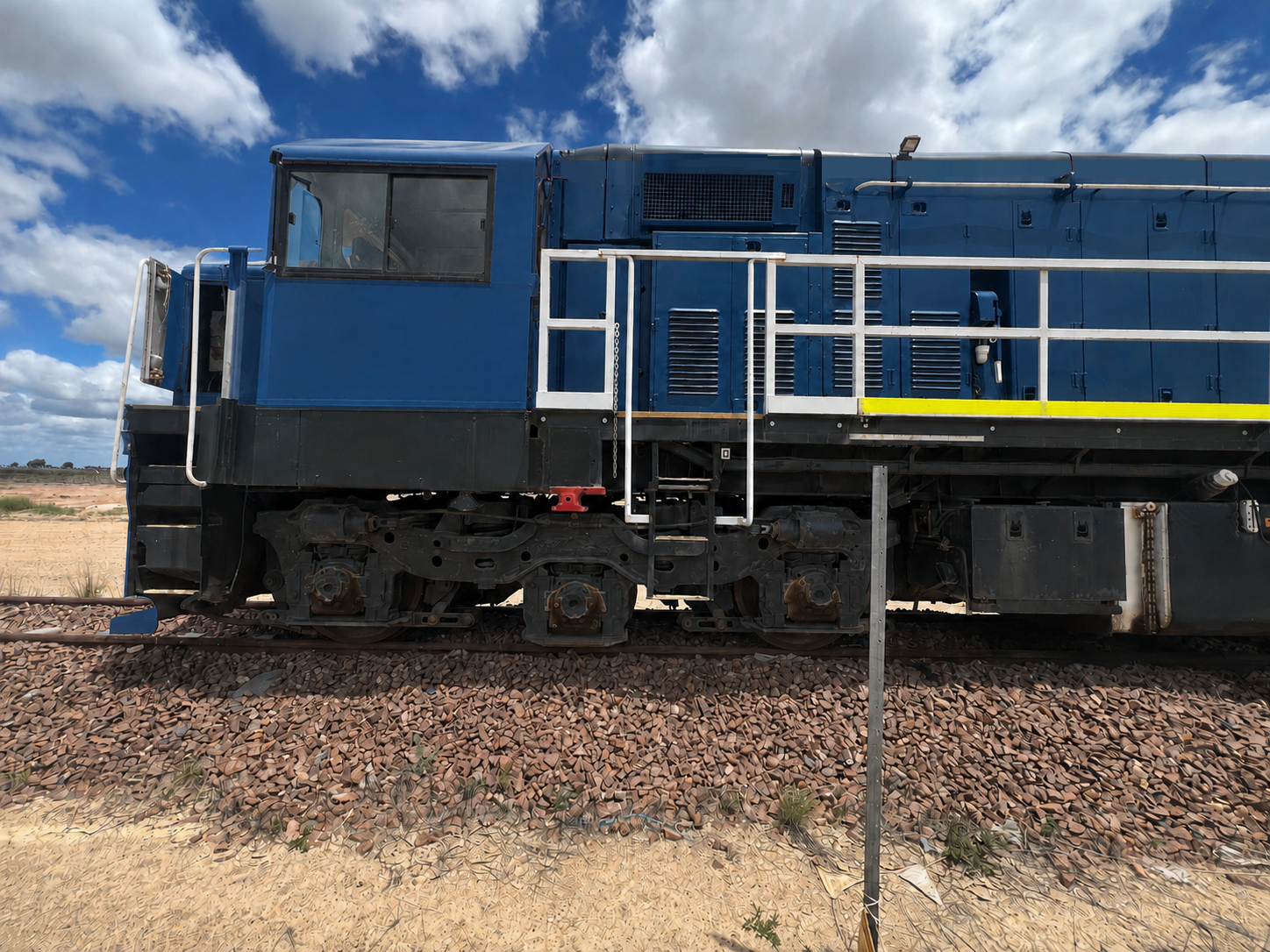

Two DC Class G12A diesel-electric locomotive units available.
Originally built by GM Canada and later rebuilt by Clyde Engineering in Australia, these locomotives are proven heavy-duty units suitable for freight, shunting, works train, infrastructure and maintenance applications.
Powered by a GM 12-645 diesel engine, the locomotives are rated at approximately 1,118–1,230 kW and use an A1A-A1A wheel configuration with four powered axles.
With a locomotive weight of approximately 82 tonnes, continuous tractive effort of 140 kN and a maximum speed of 100 km/h, these units provide a robust platform for a wide range of rail operations.
Specifications
| Specification | Details |
|---|---|
| Class | DC |
| Model | G12A |
| Builder | GM Canada |
| Original Build Period | 1961–1967 |
| Rebuilt By | Clyde Engineering, Australia |
| Rebuild Period | 1978–1981 |
| Certification Year | 2020 |
| Transmission | Diesel Electric |
| Engine | GM 12-645 |
| Power | 1,118–1,230 kW |
| Wheel Configuration | A1A-A1A |
| Locomotive Weight | 82 tonnes |
| Length Over Couplers | 14.10 metres |
| Driving Wheel Diameter | 1,018 mm |
| Idler Wheel Diameter | 836 mm |
| Brake System | 26L |
| Alternator | D22F-D14 / D32F-D14 |
| Traction Motors | D29 / D31 |
| Continuous Tractive Effort | 140 kN |
| Gear Ratio | 63:14 |
| Maximum Speed | 100 km/h |
Applications
These locomotives may be suitable for:
- Freight and works train operations
- Shunting duties
- Rail construction projects
- Infrastructure and maintenance operations
- Industrial rail applications
- Contractor and private rail operations
Country: Australia
Equipment inspection is available by arrangement
