GE C44-9W – Dash 9-44CW Locomotive
Listing Status: Available
10 in working order
2 as hulks (full rebuild required)

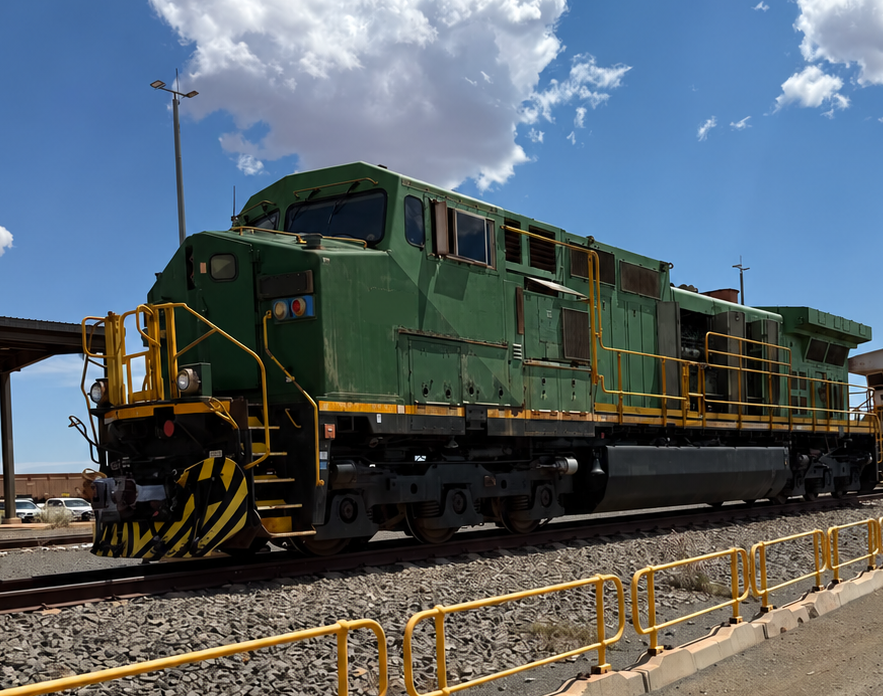

2007 General Electric C44-9W / Dash 9-44CW heavy-haul diesel-electric locomotive, built in 2007. The locomotive is equipped with a GE 7FDL16 / FDL-16 V16 turbocharged diesel engine rated at 4,400 hp, a GE GMG197 main alternator and six GE 752AH DC traction motors.
The locomotive has a C-C / Co-Co wheel arrangement with six powered axles and GE Hi-Ad three-axle bogies. Operating weight of 197 t, approximately 21.4 m overall length, approximately 3.12 m width, approximately 4.69 m height and a track gauge of 1,435 mm standard gauge.
Additional model specifications include approximately 108,600 lbf / 483 kN continuous tractive effort, a typical maximum speed of approximately 70 mph / 113 km/h and an estimated fuel capacity of approximately 19,000–20,000 L, subject to confirmation. The equipment includes microprocessor control, wheel-slip control, multiple-unit capability and dynamic braking.
Specifications
General & Dimensions
Powerplant & Performance
Running Gear
Electrical & Mechanical Systems
Air & Braking Systems
Additional Details
GYA28A air compressor, GYA30A radiator-fan motor and GDY91A traction-motor blowers.
