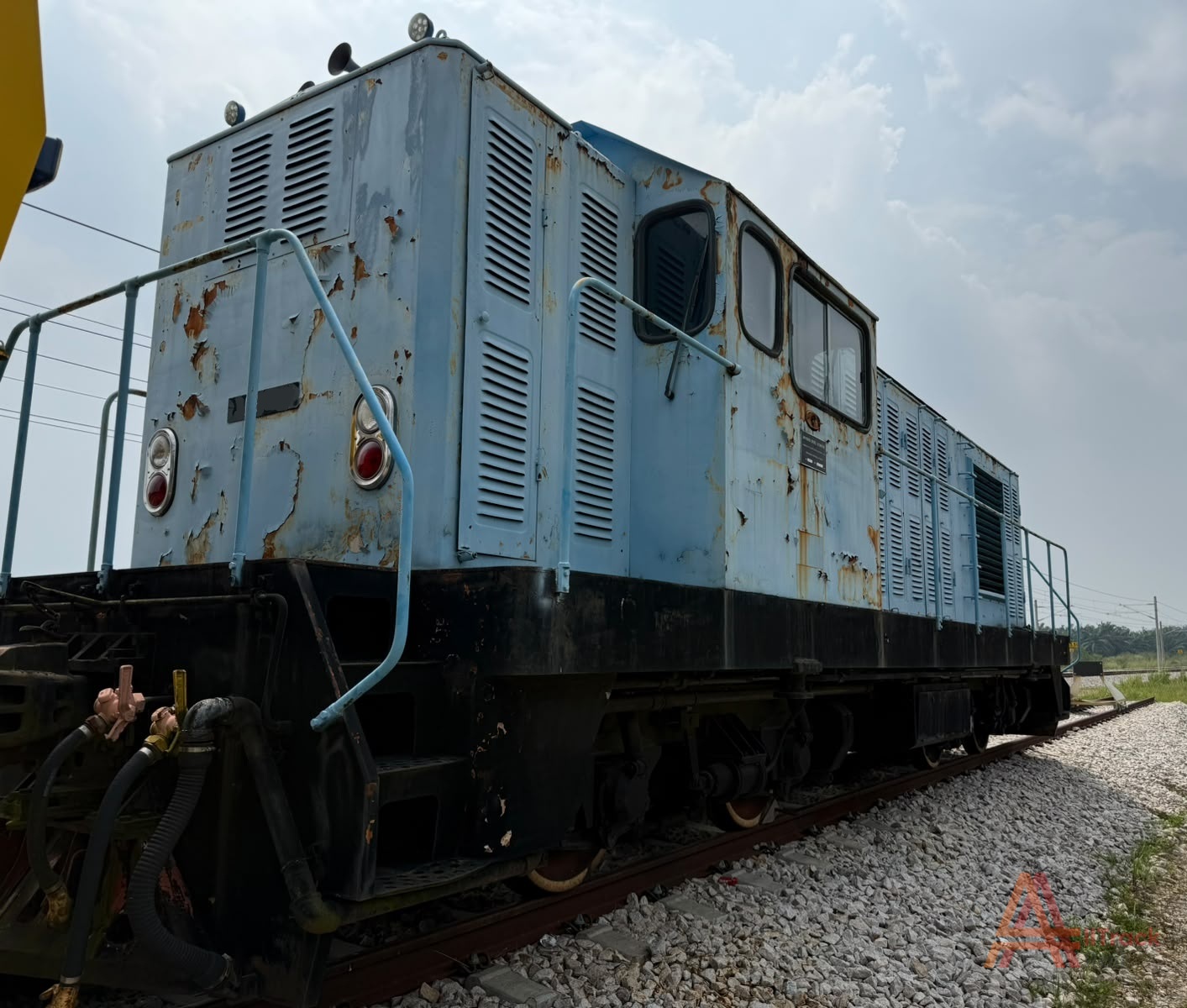

JMY400M(B) Diesel-Hydraulic Locomotive
Listing Status: New Listing

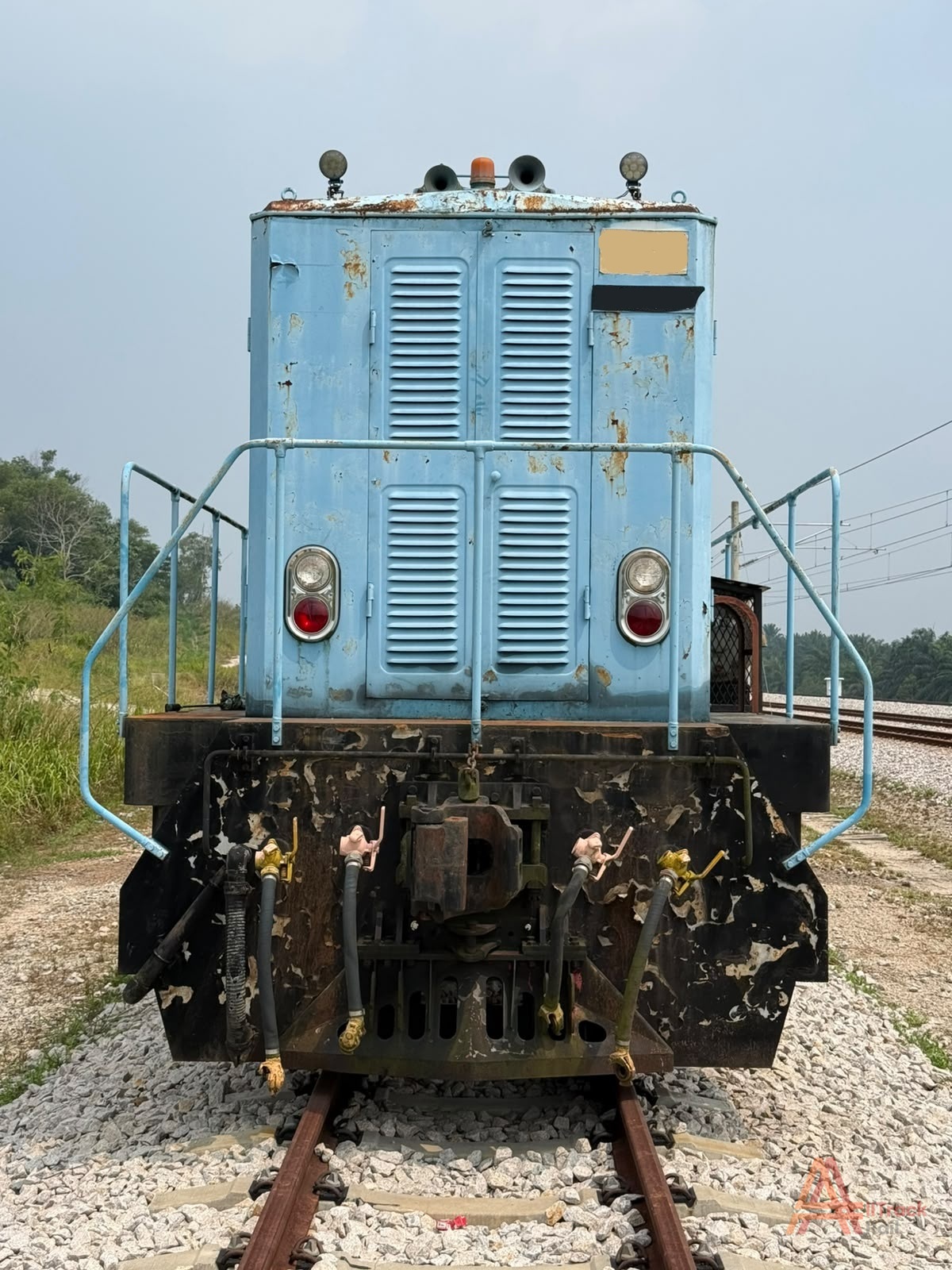

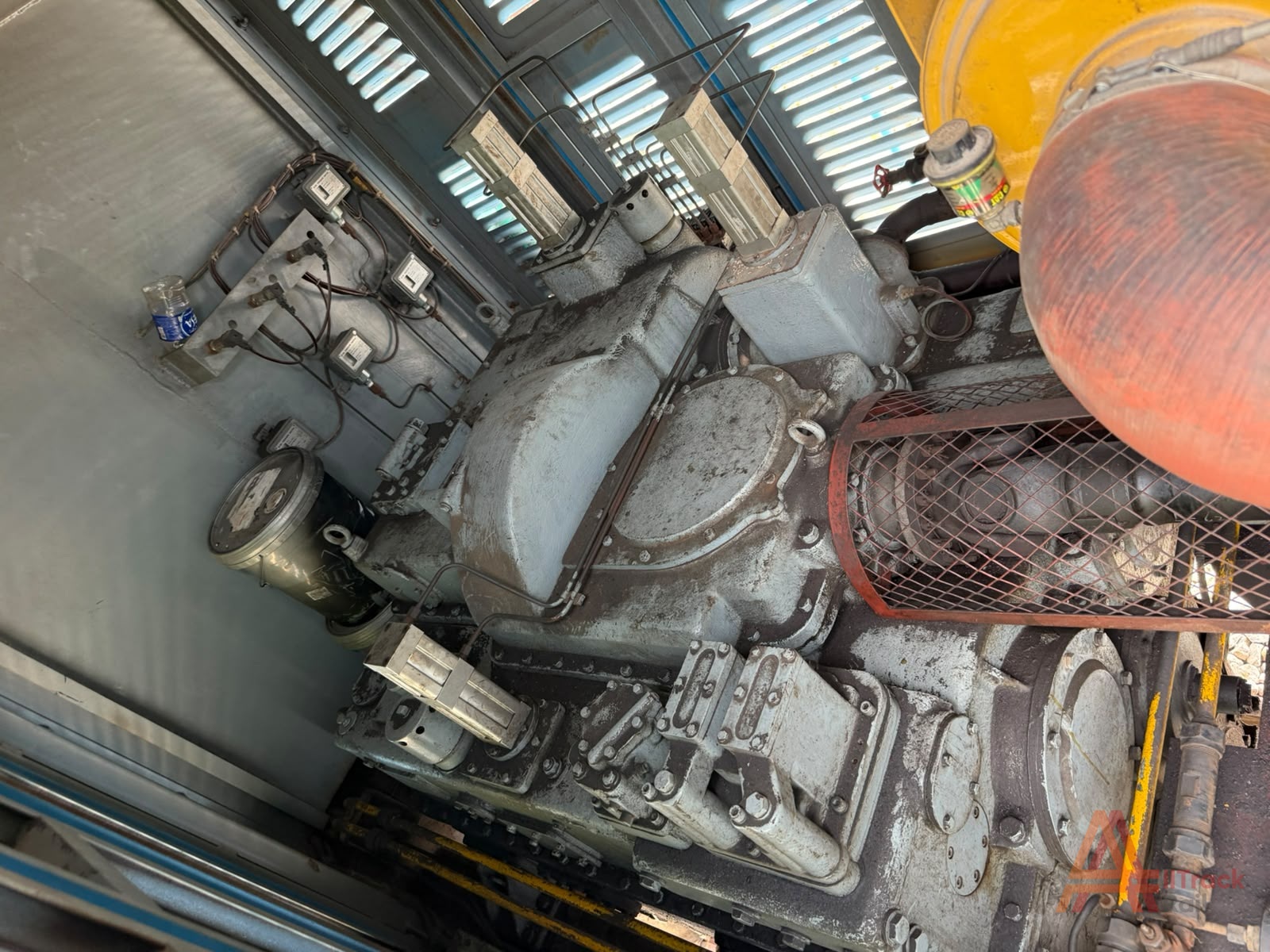

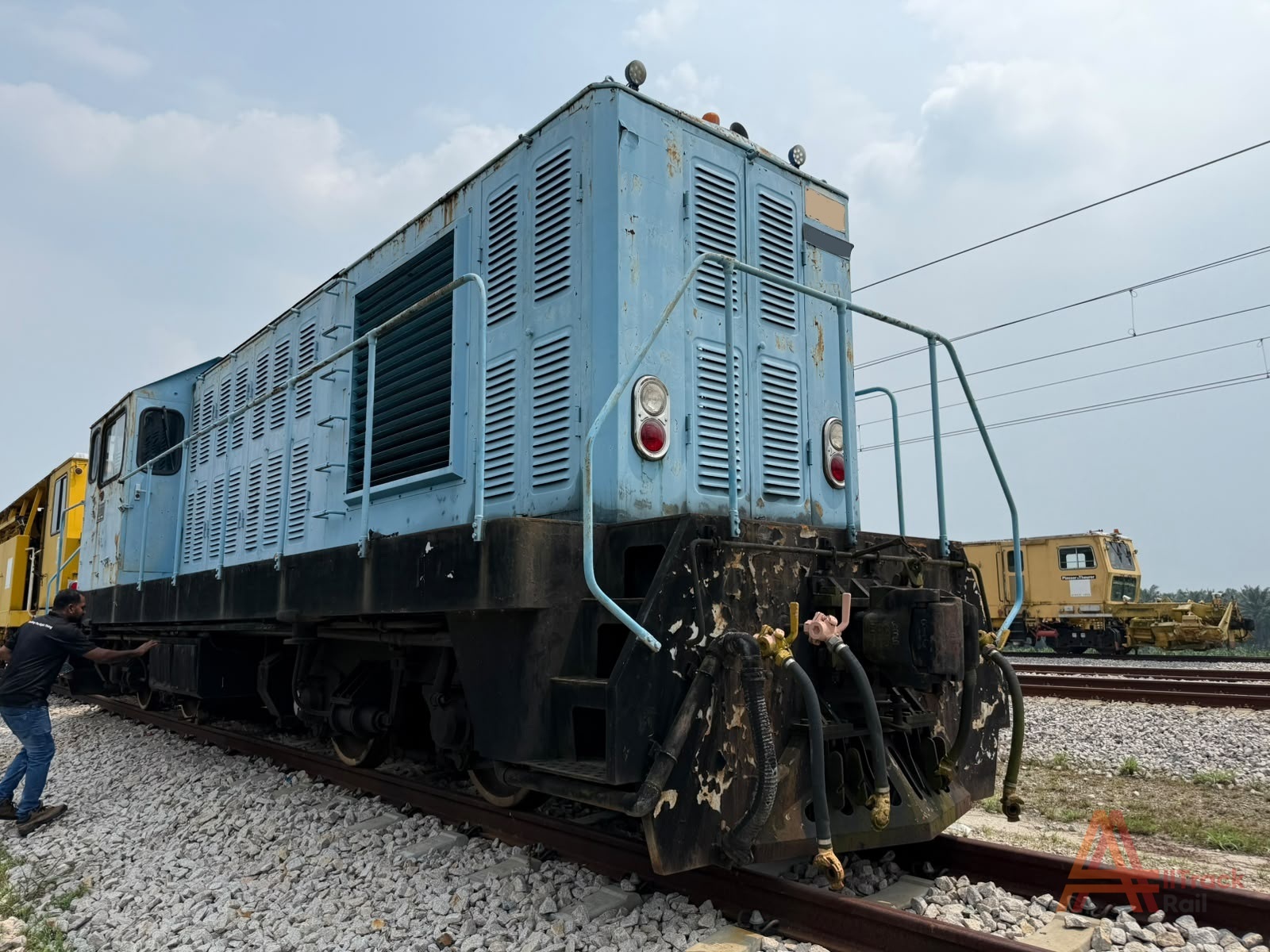

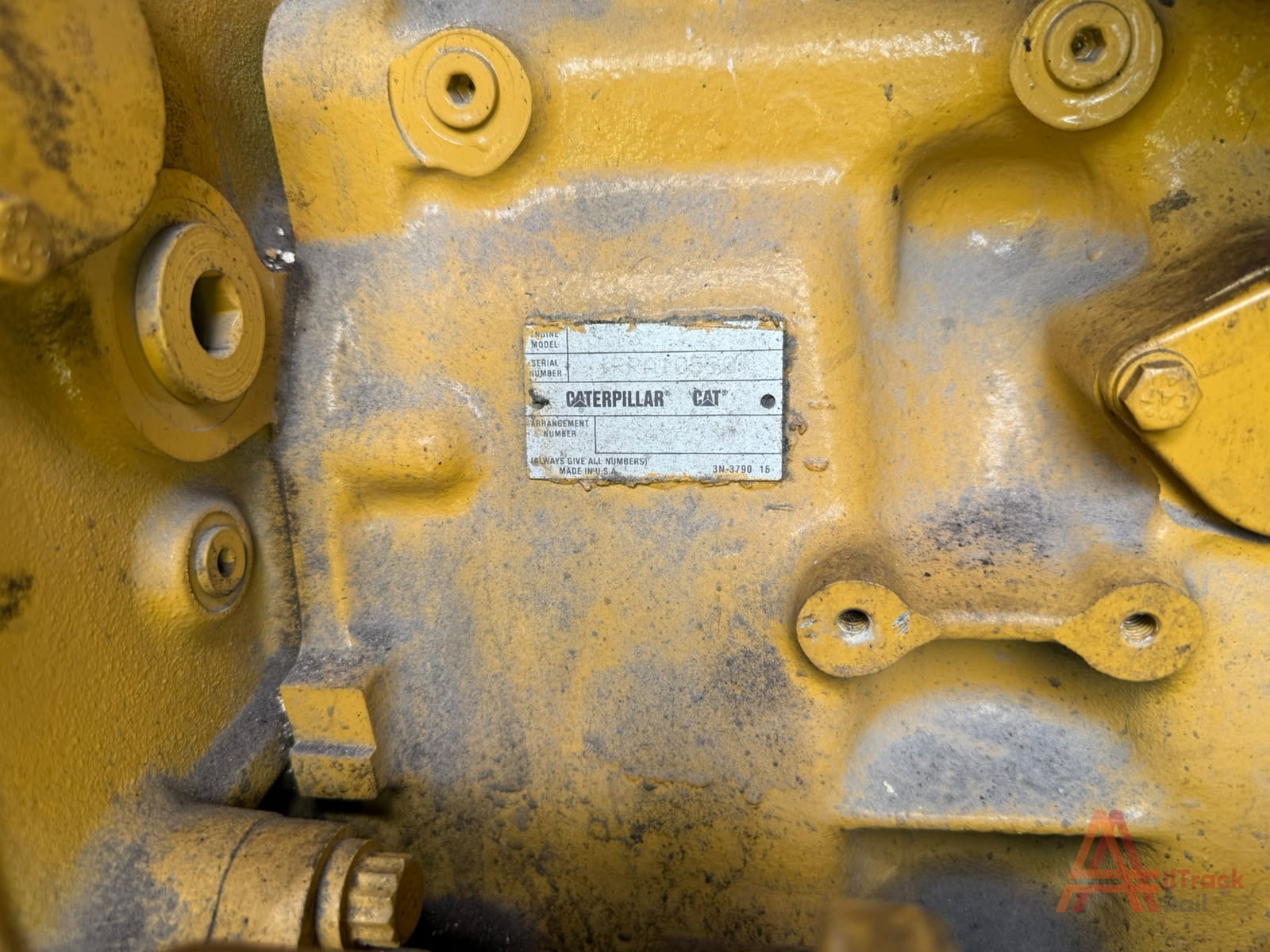

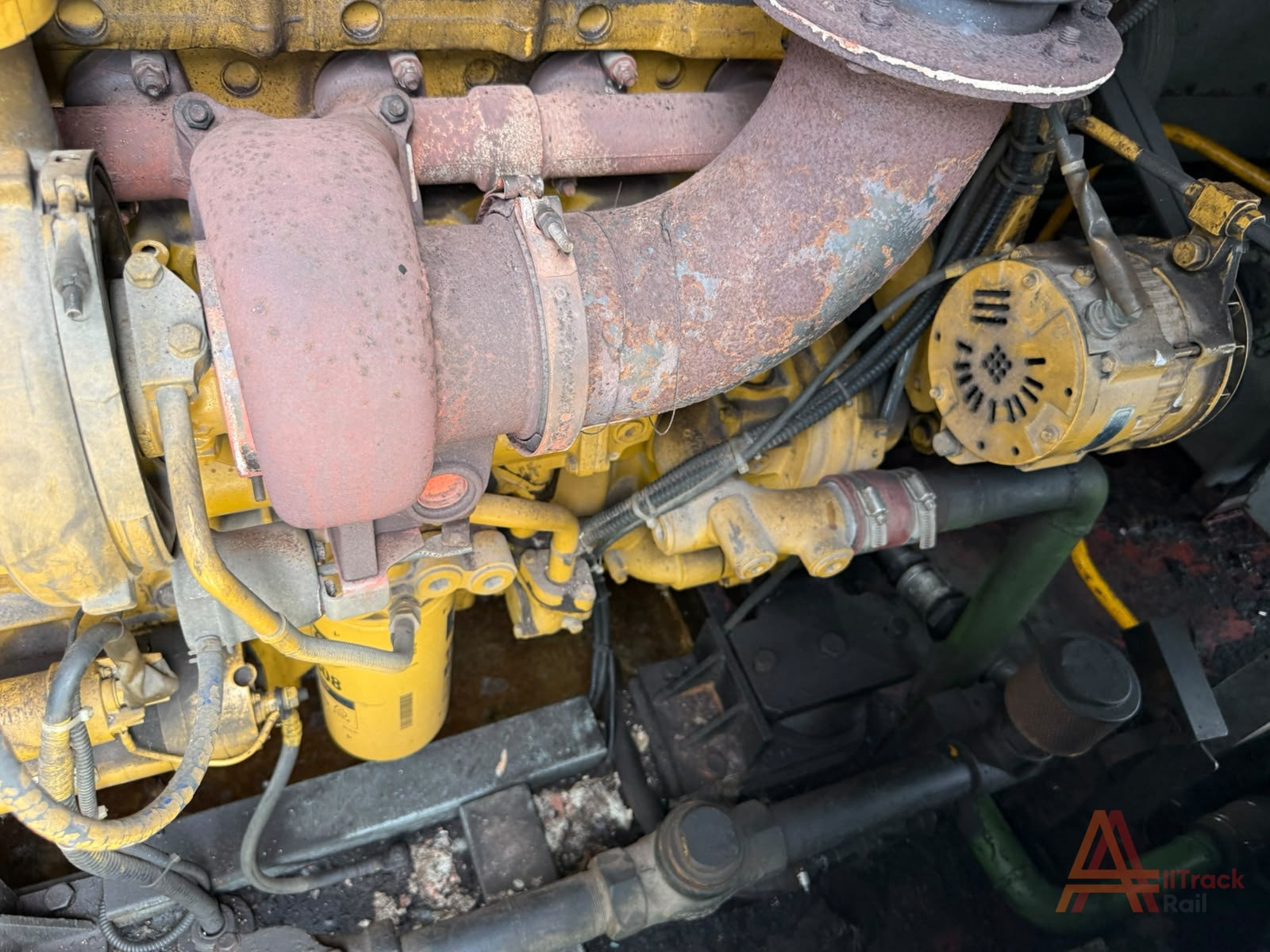

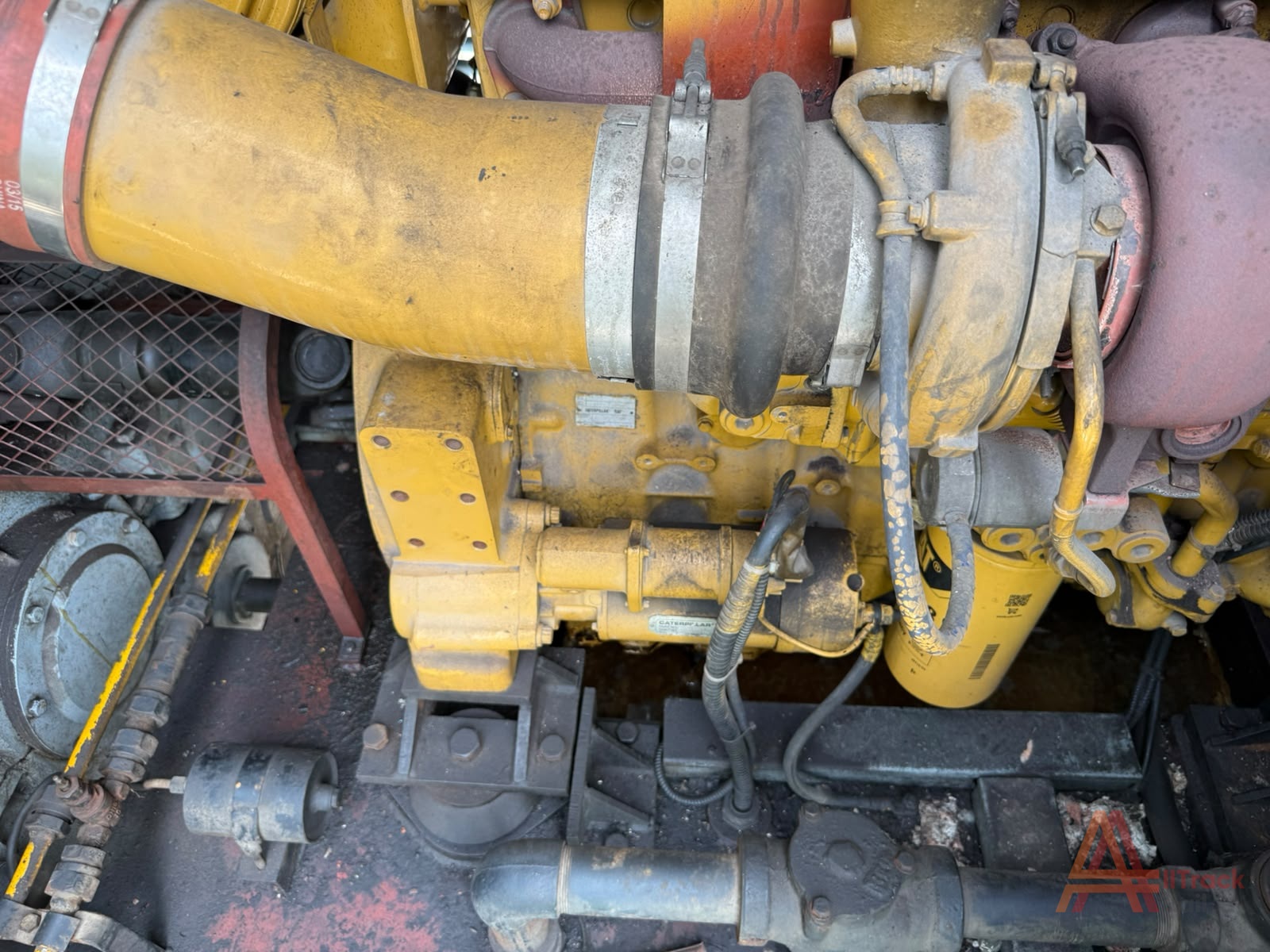

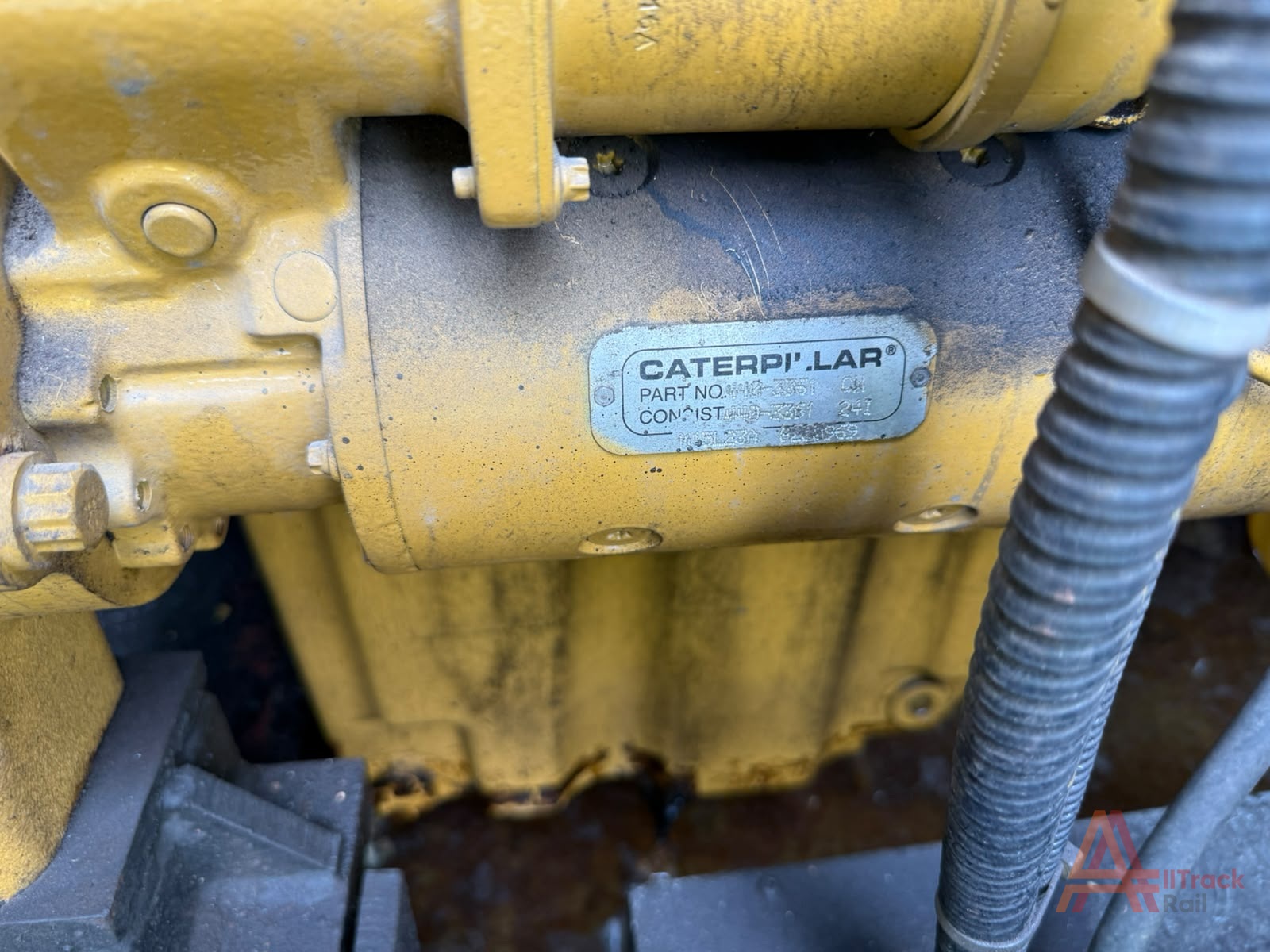

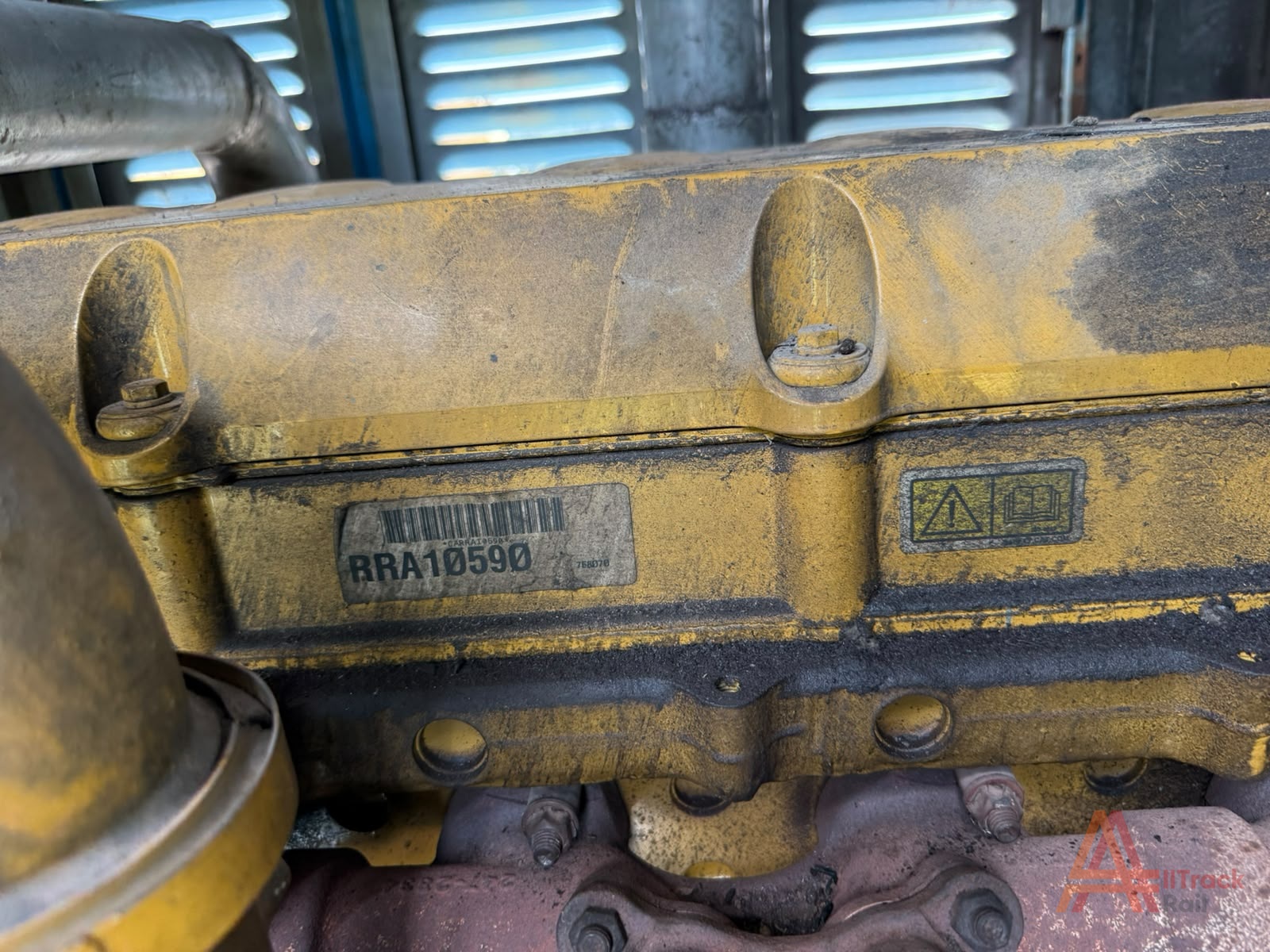

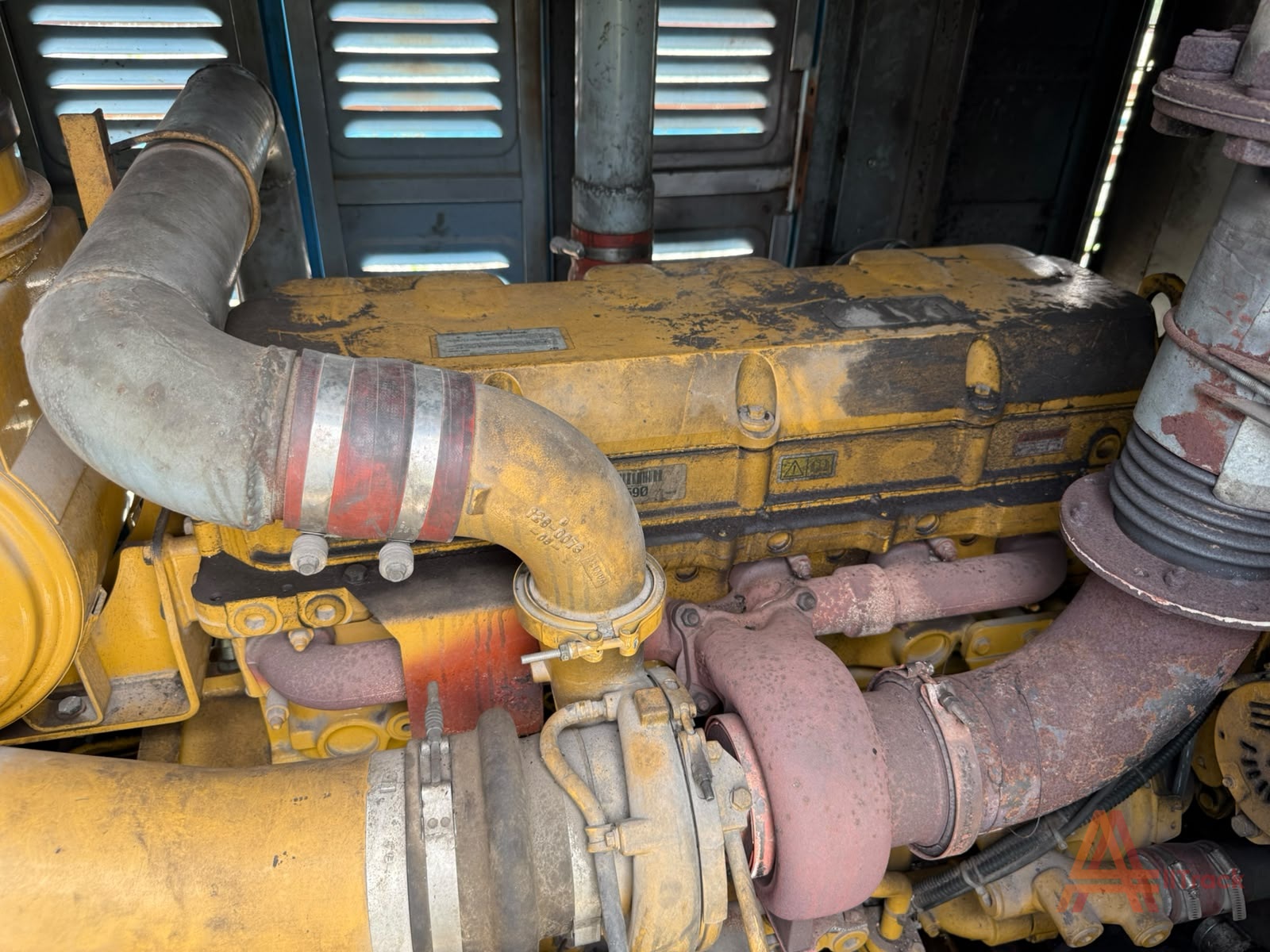

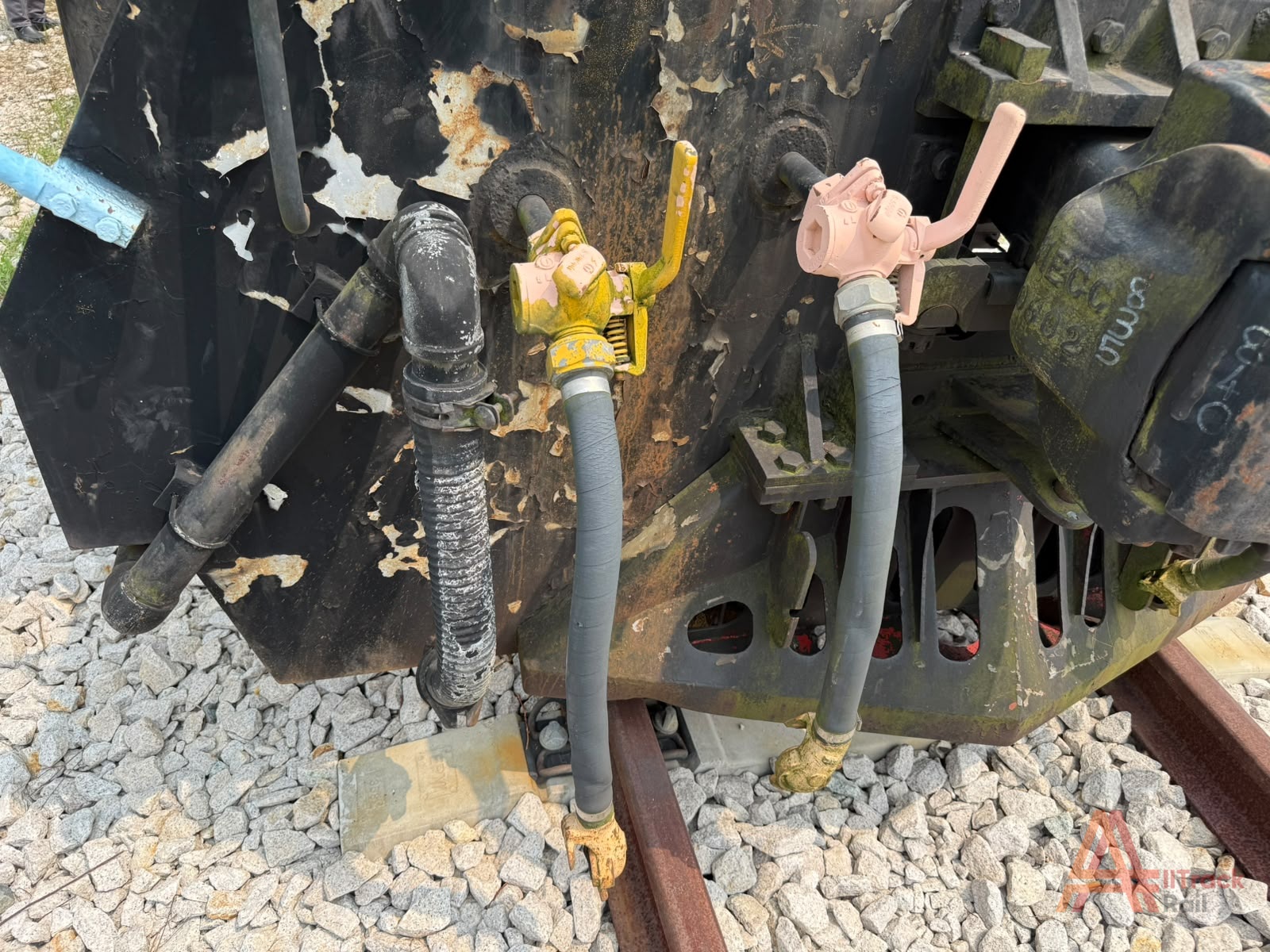

Available is a Changzhou HC JMY400M(B) diesel-hydraulic locomotive with a Caterpillar C13 12.5-litre, six-cylinder inline, turbocharged and aftercooled diesel engine rated at 328 kW / 440 hp at 2,100 rpm. It has 1,000 mm track gauge, B-B axle arrangement, four axles, diesel-hydraulic transmission and an air brake system with hand brake assembly.

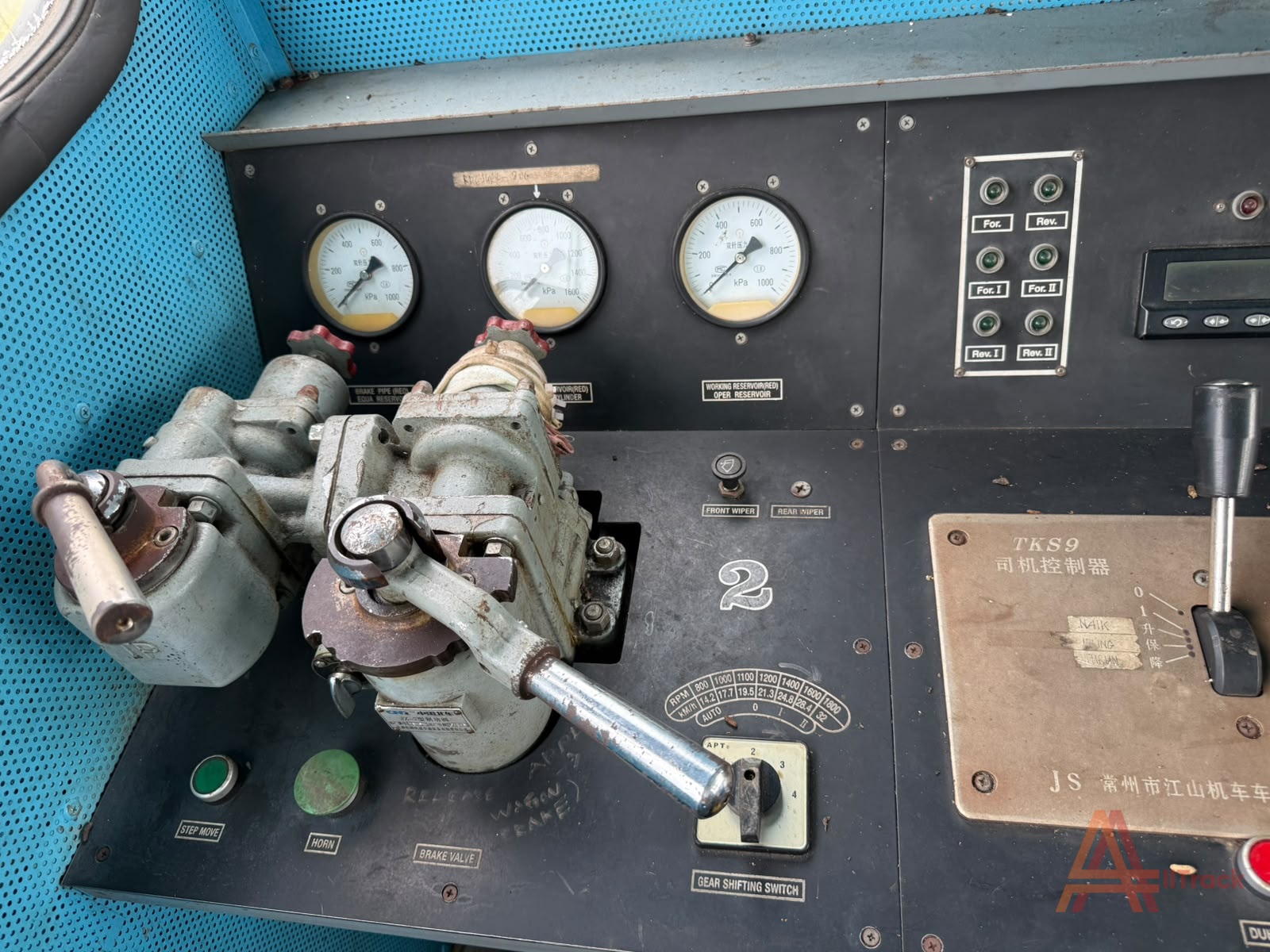

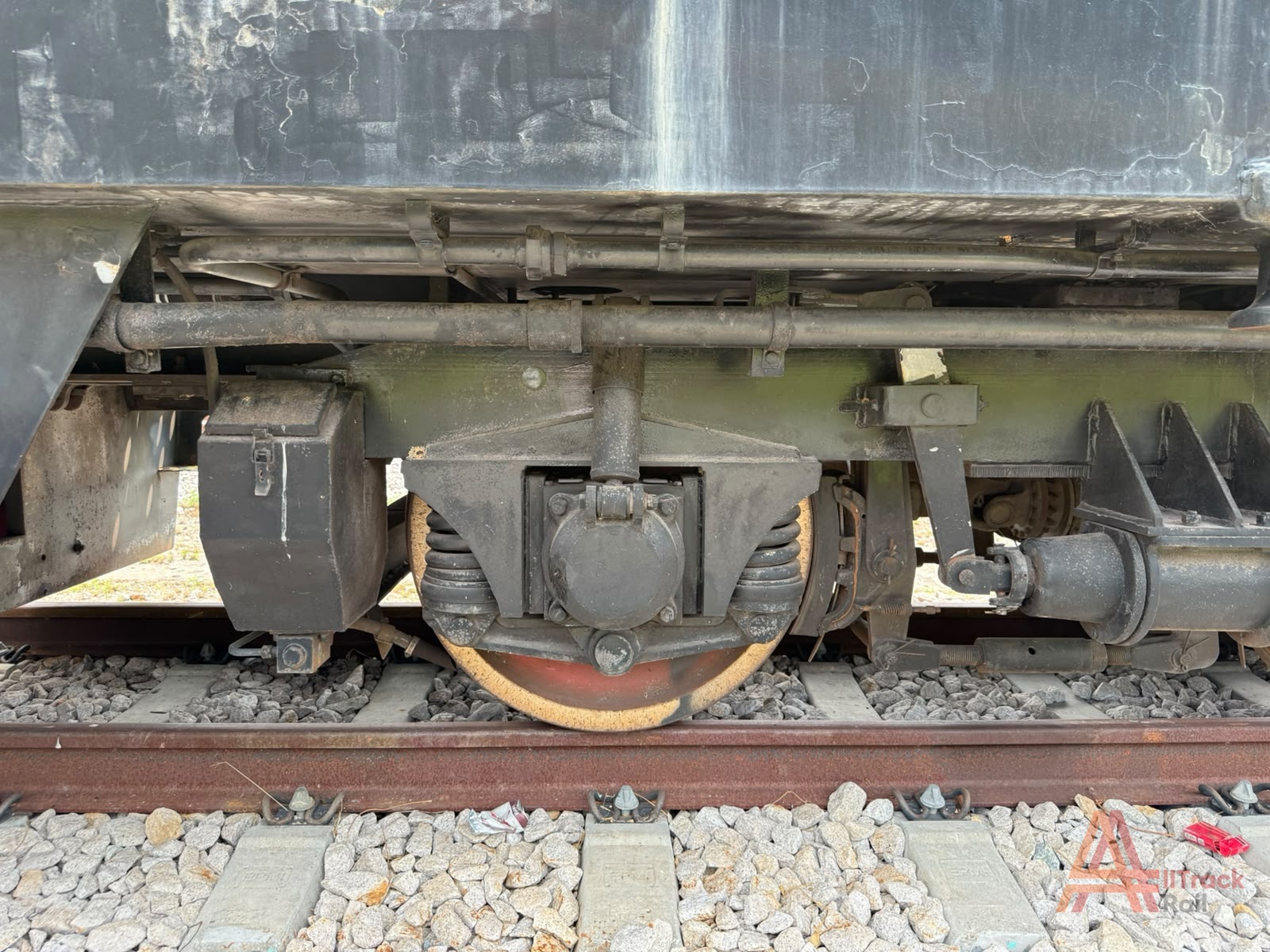

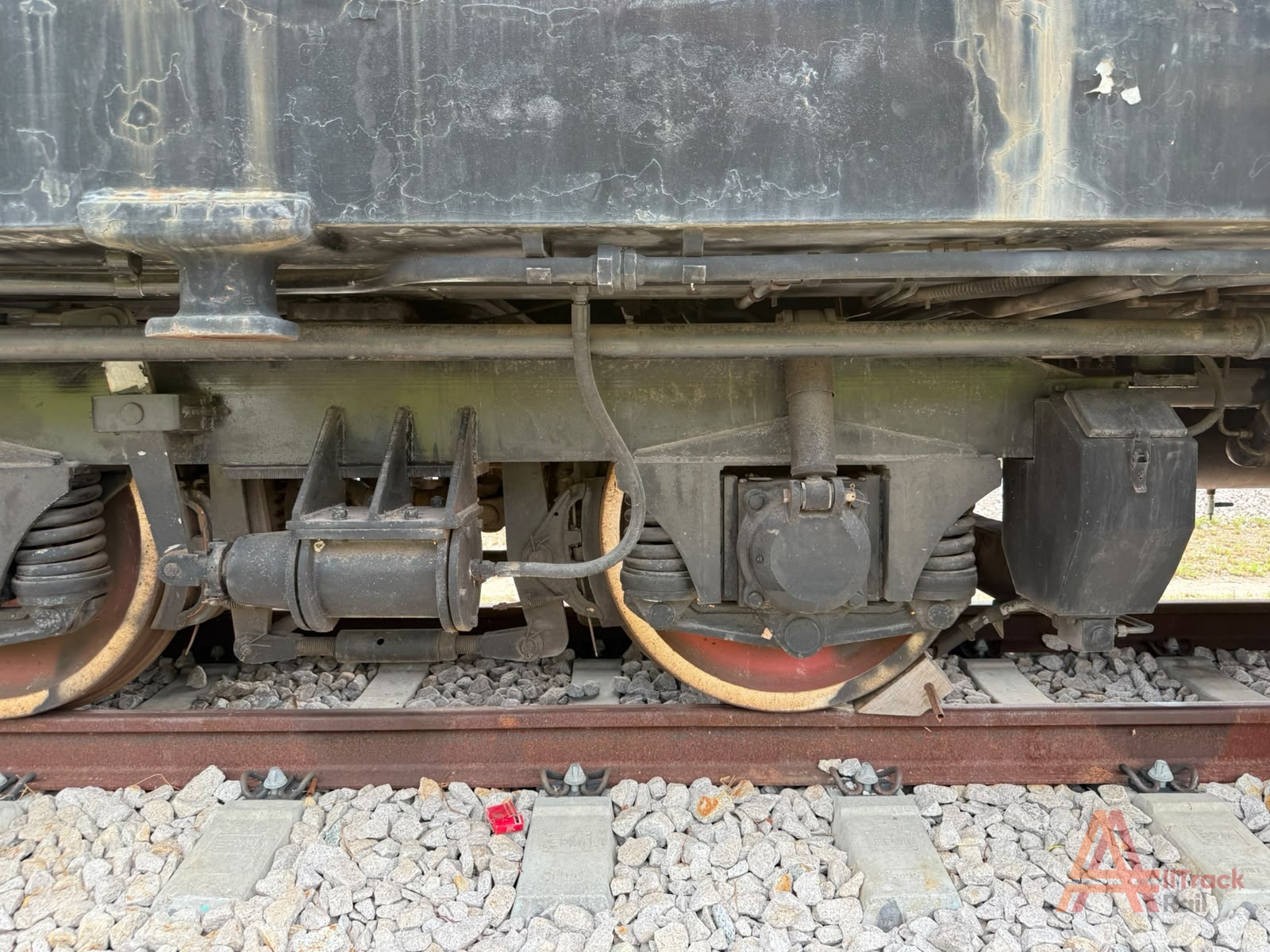

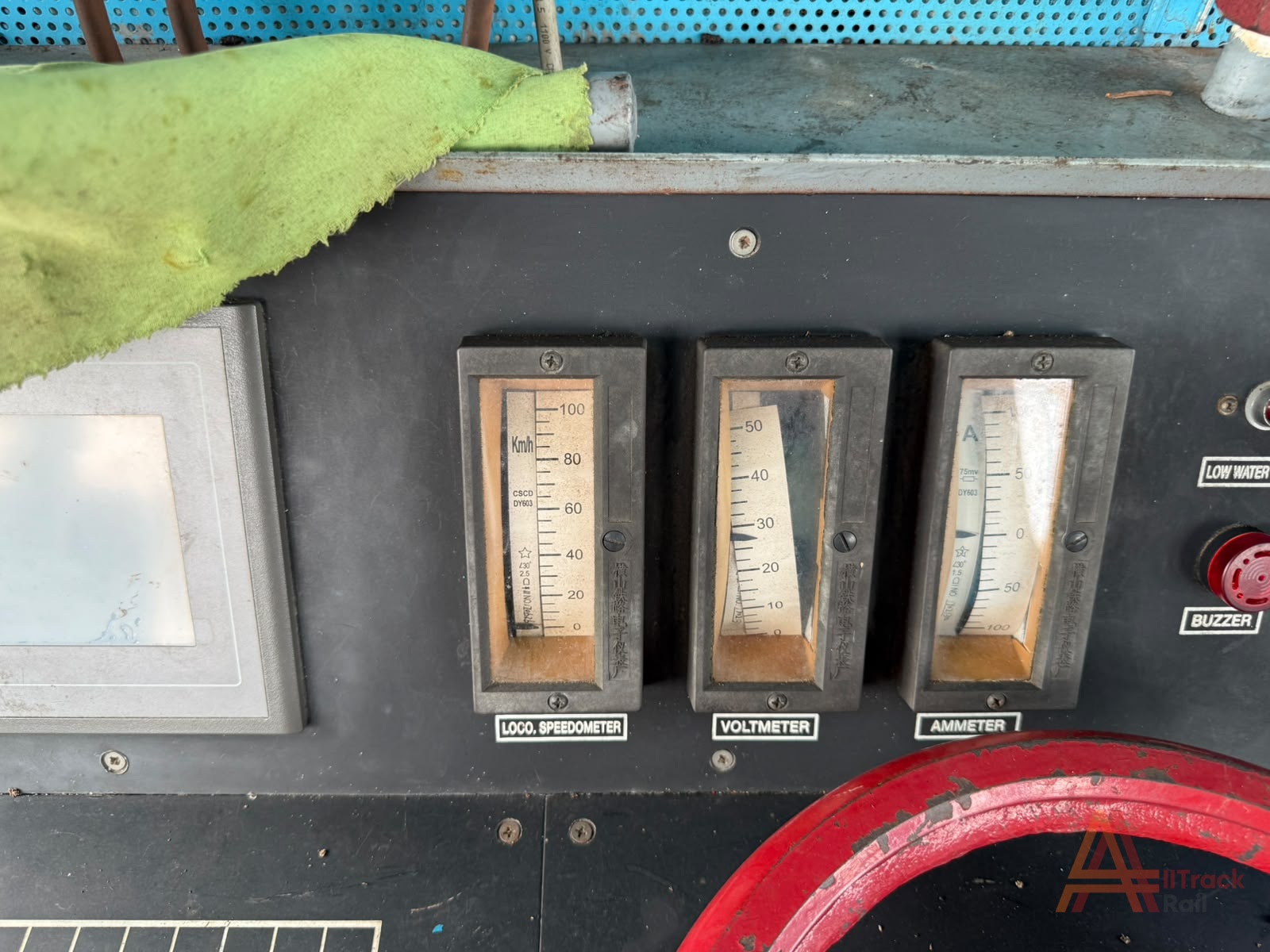

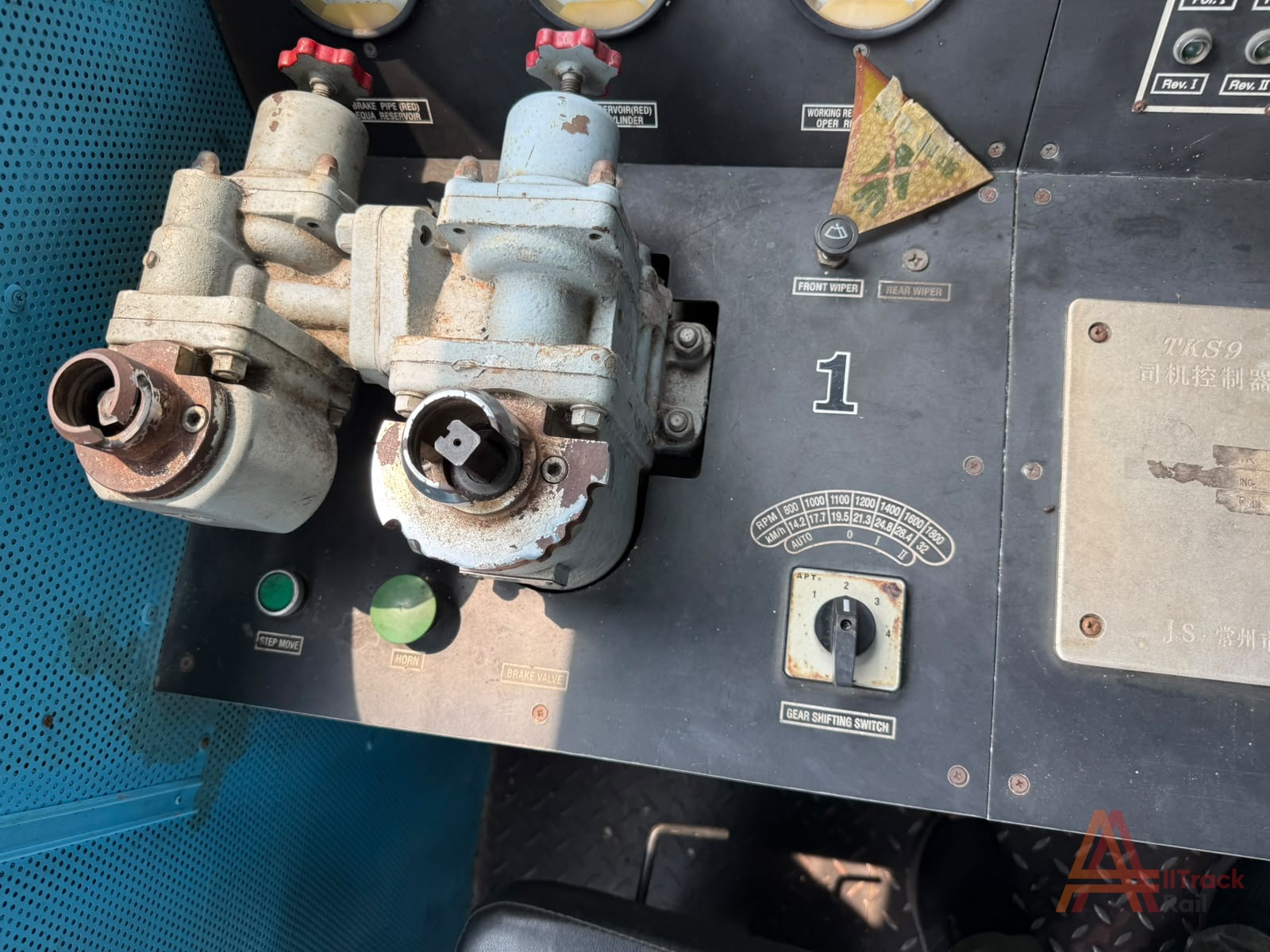

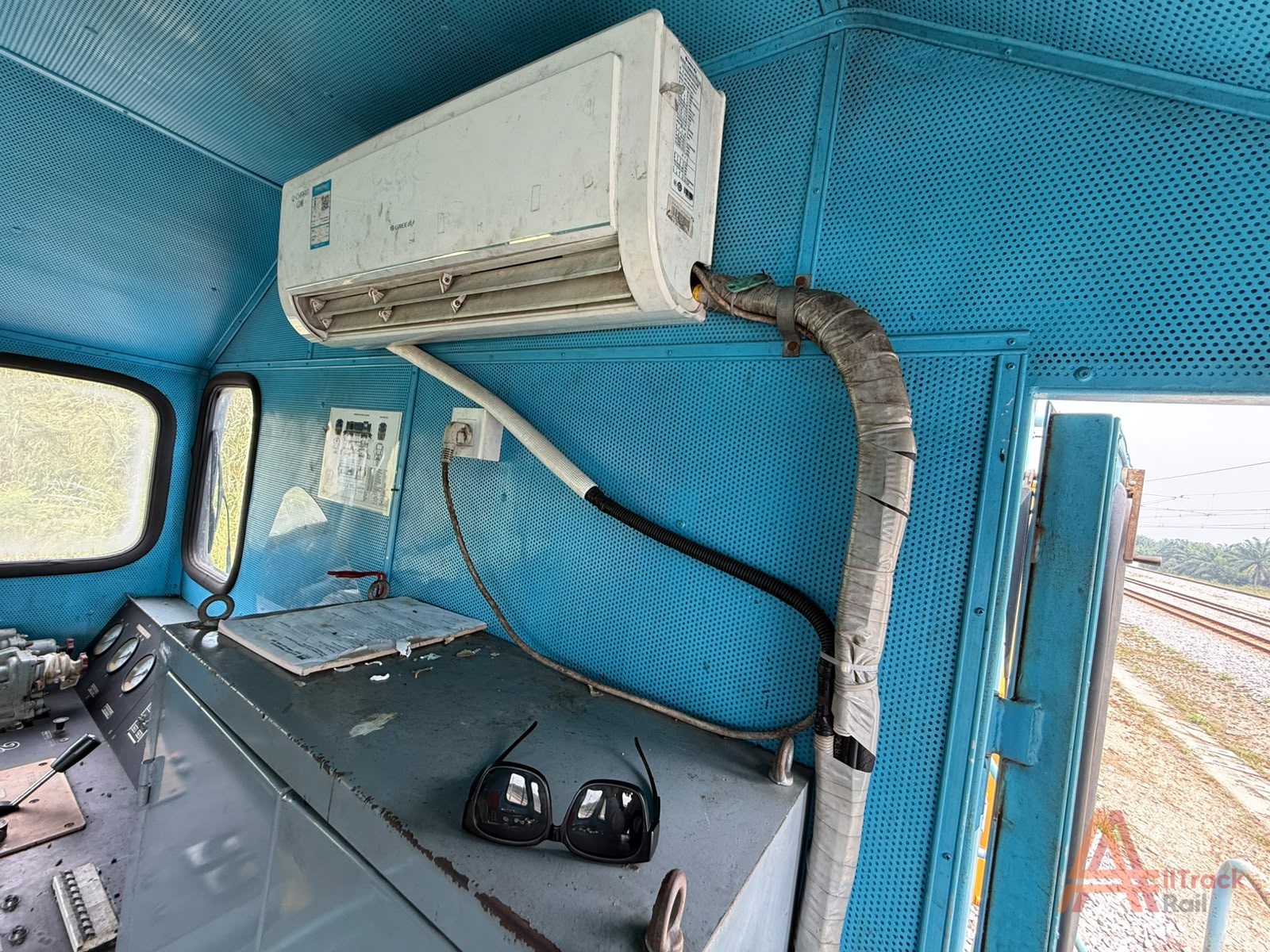

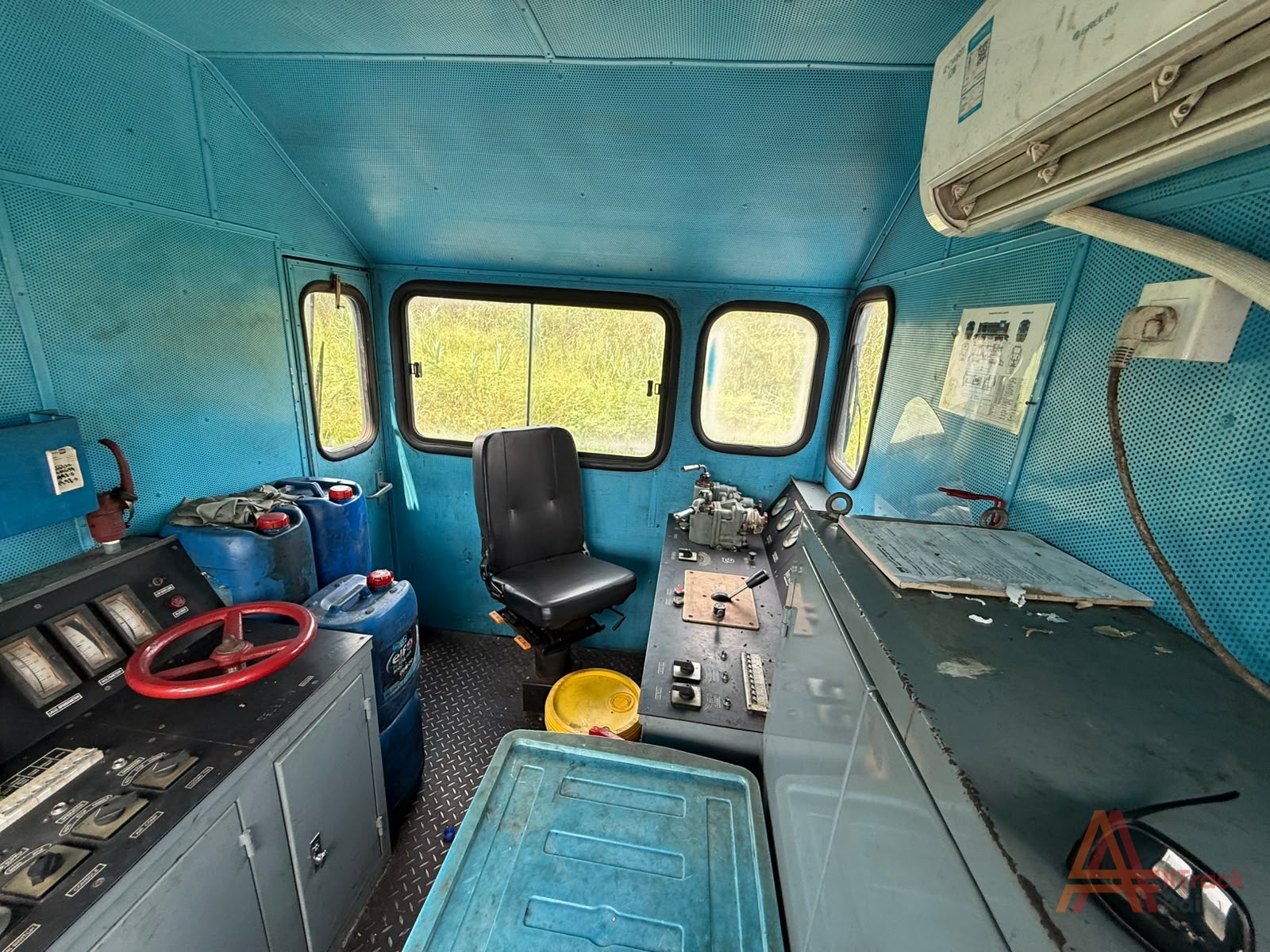

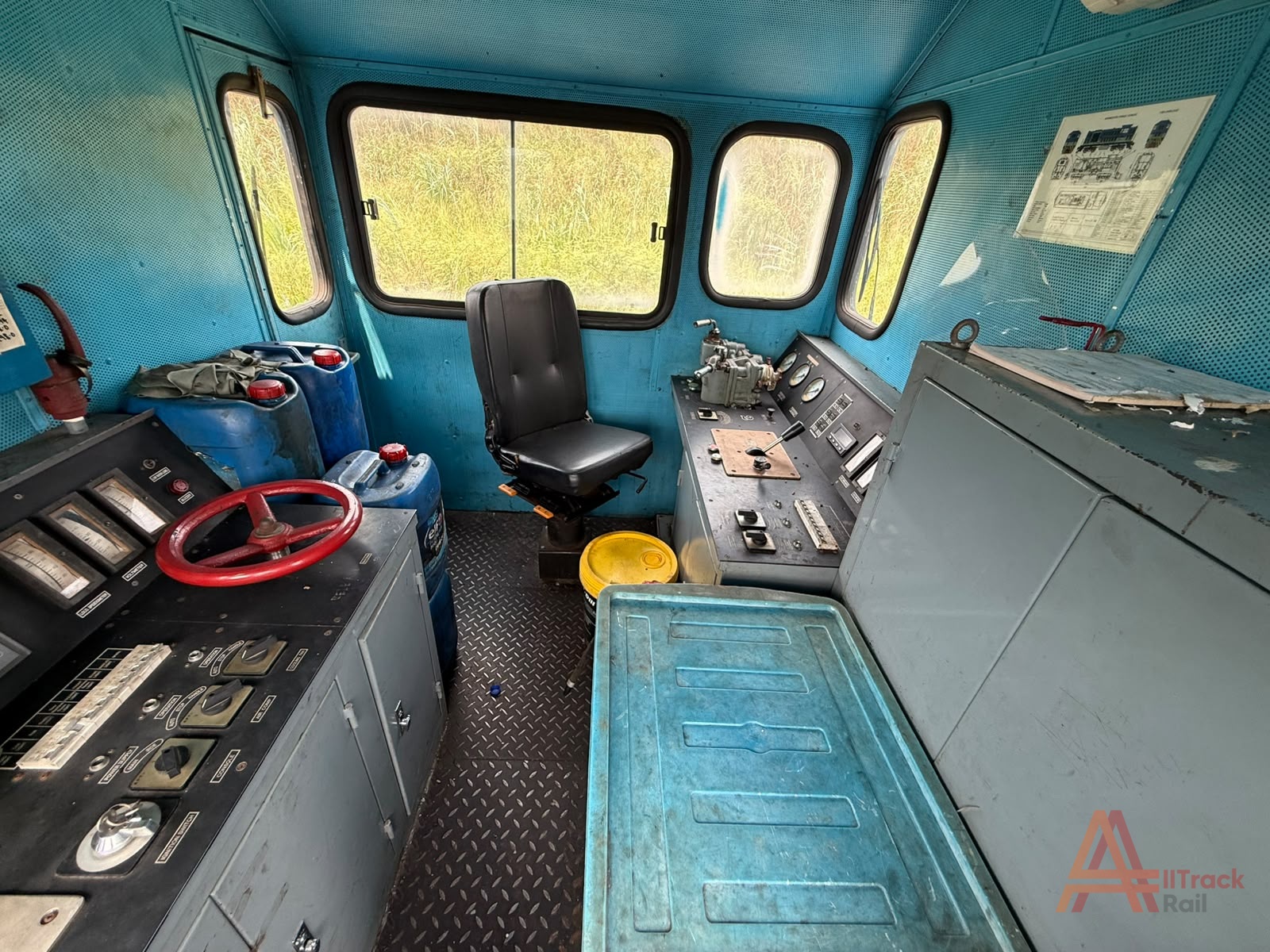

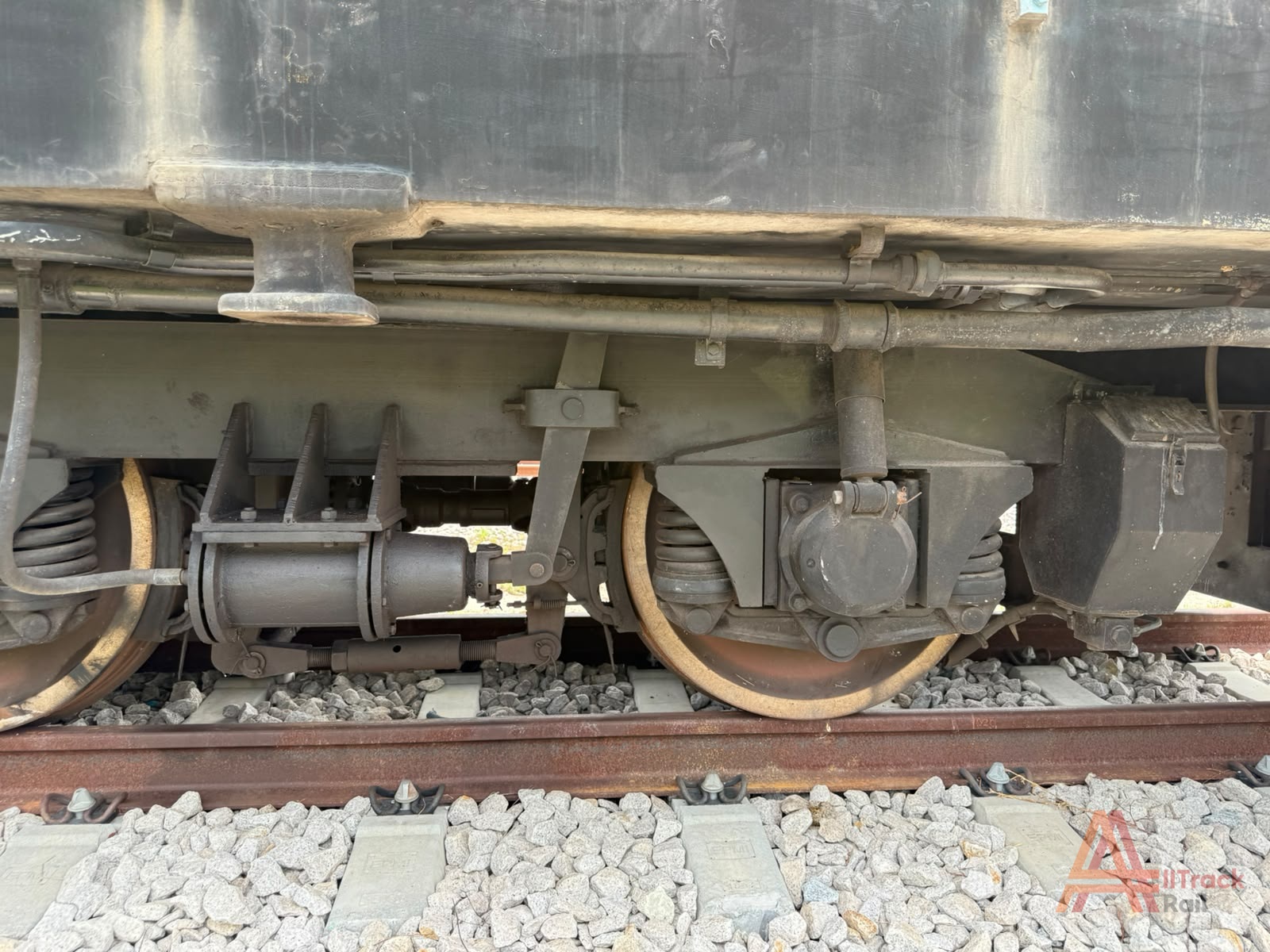

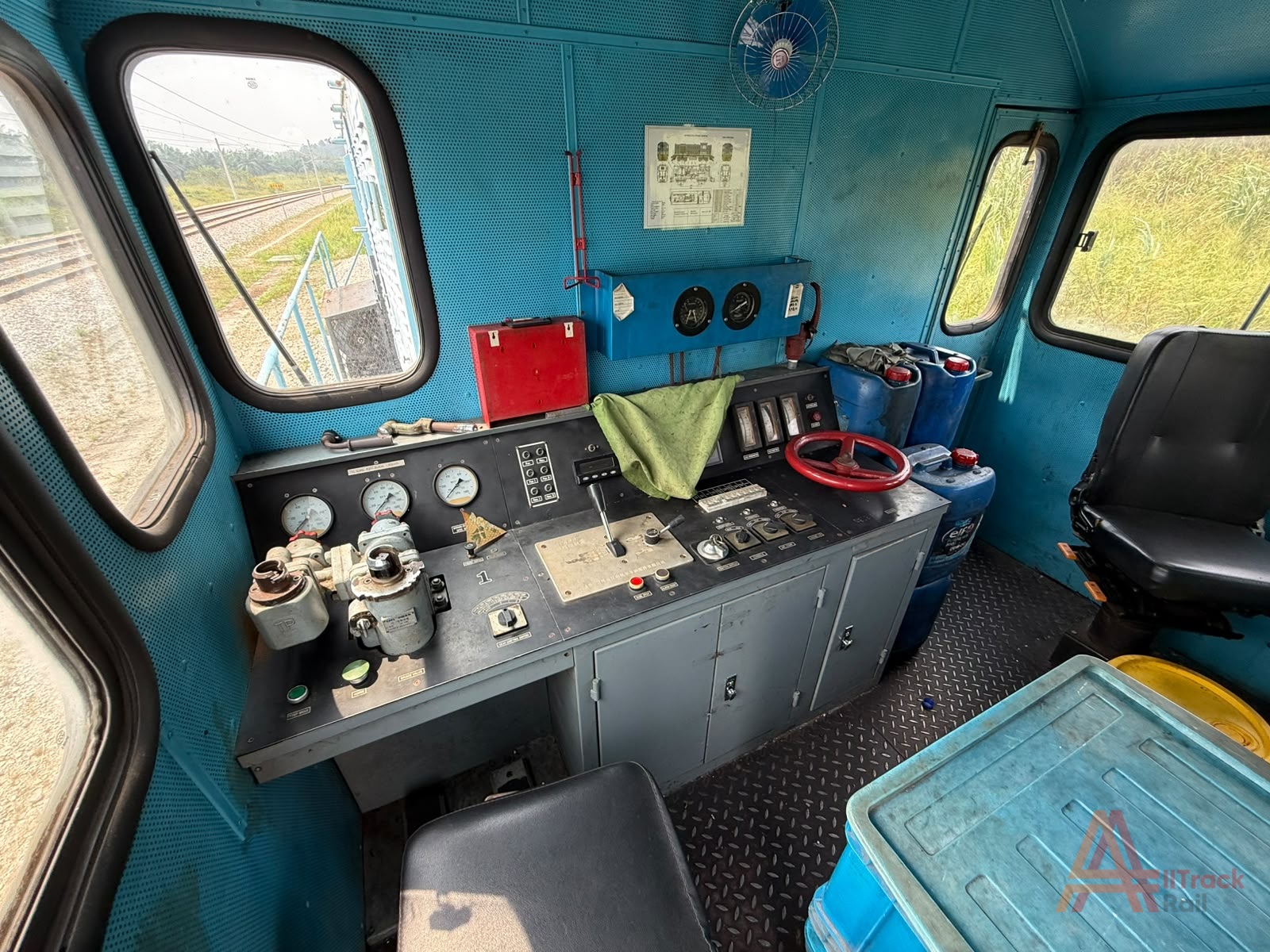

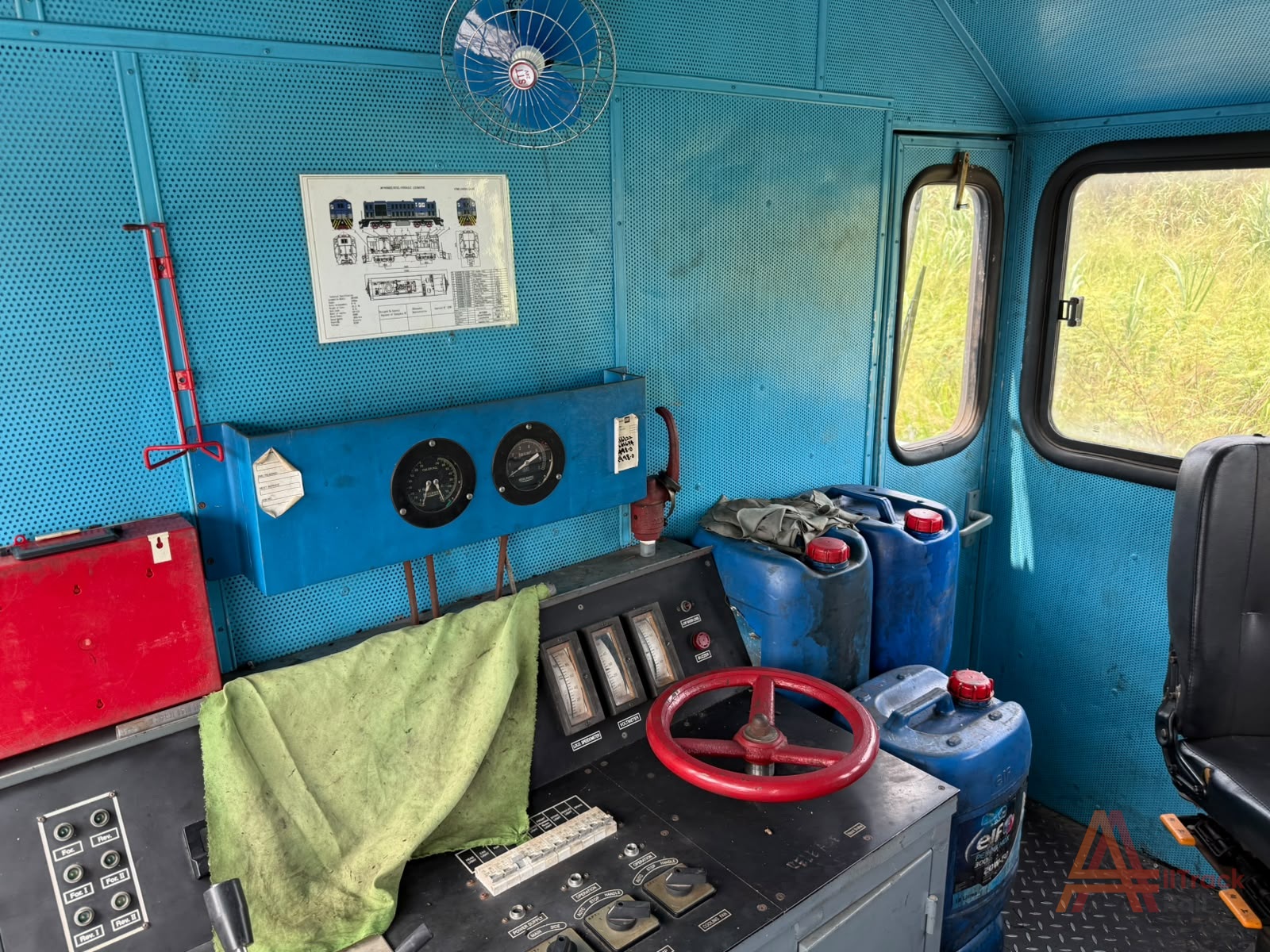

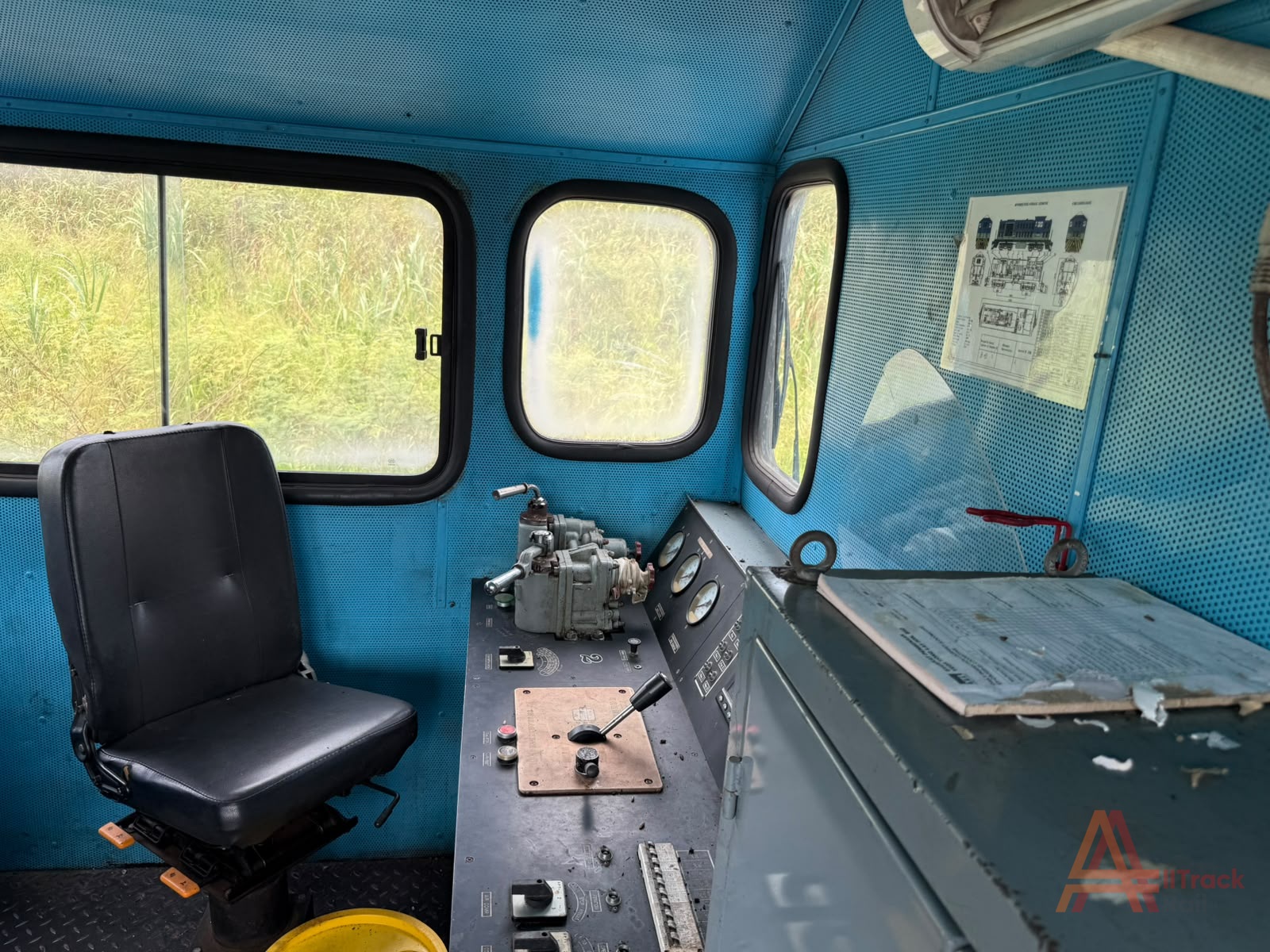

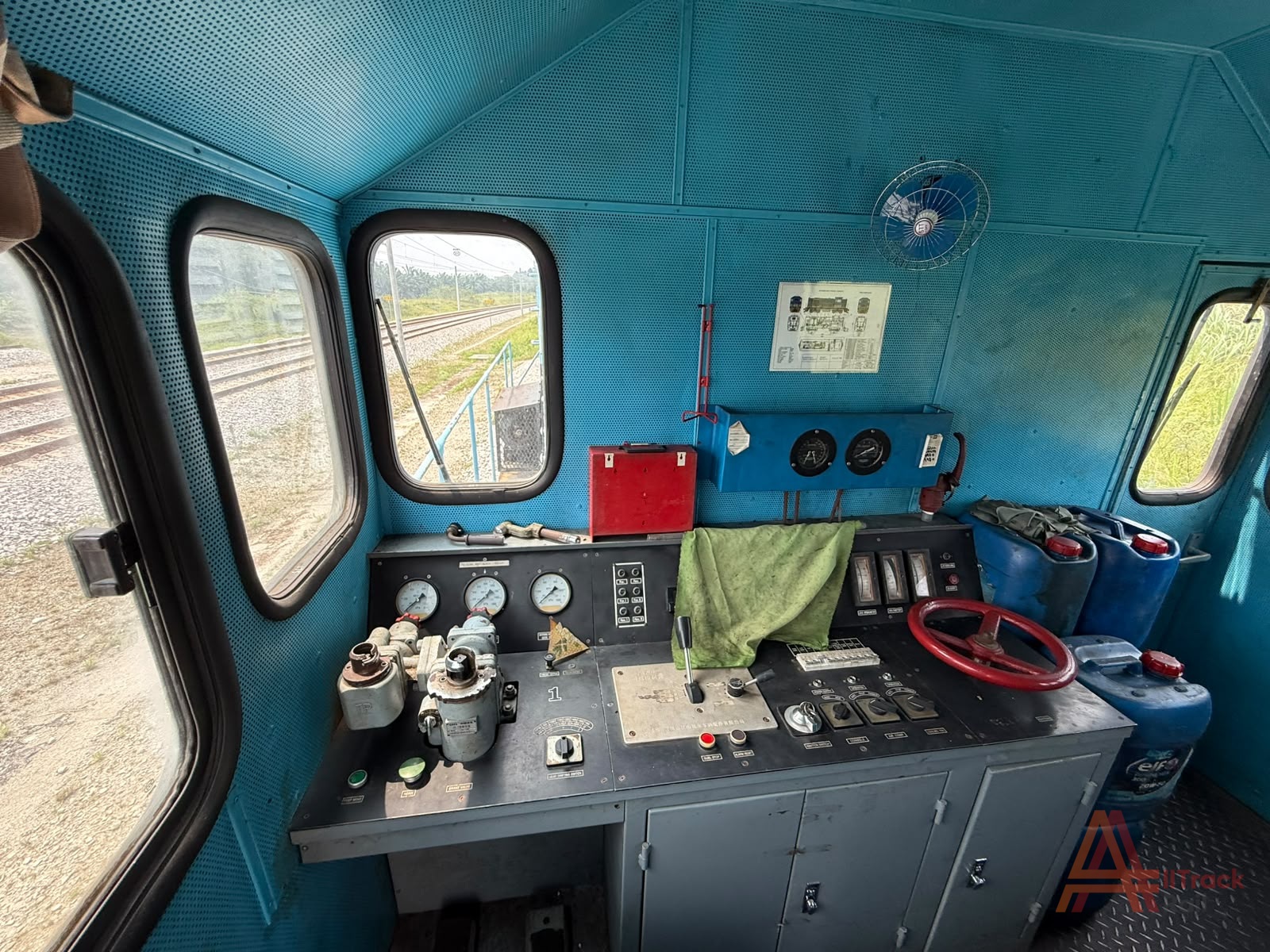

The locomotive features an enclosed driver’s cab with air-conditioning, a 24 V DC electric starting system, and locomotive and bogie lifting arrangements. Overall dimensions are 11,950 mm long, 2,720 mm wide and 3,570 mm high. Operating weight is approximately 42 tonnes ±3%, with an approximate axle load of 10.5 tonnes. Bogie centres are 5,600 mm and bogie wheelbase is 1,800 mm.
Equipment inspection is available by arrangement.
Specifications
General & Dimensions
Powerplant & Performance
Running Gear
Electrical & Mechanical Systems
Air & Braking Systems
Additional Details
Location
