K920 Flash Butt Welding Machine
Listing Status: Available
K920 Flash Butt Welding Machine – available from Alltrack Rail.

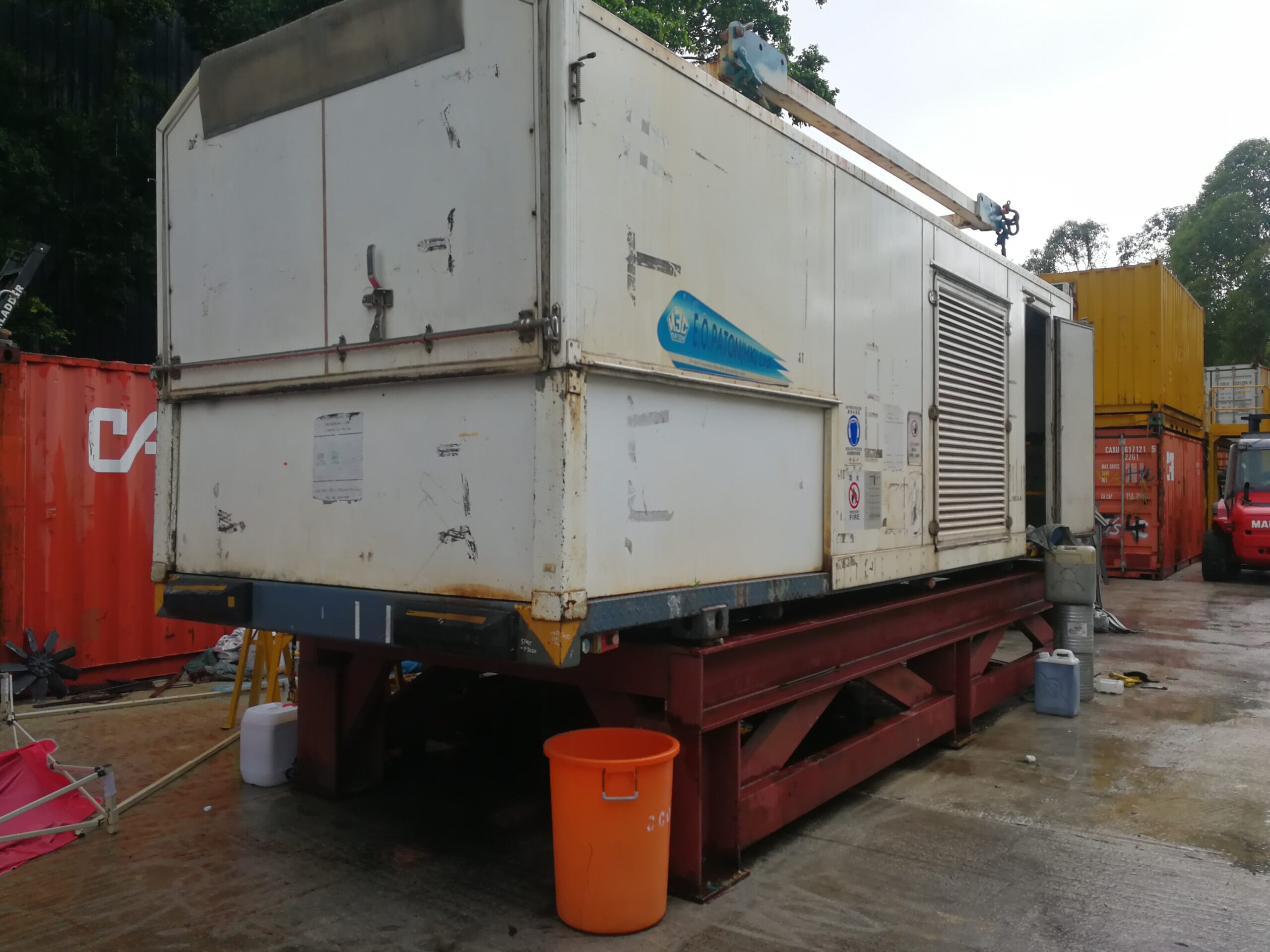

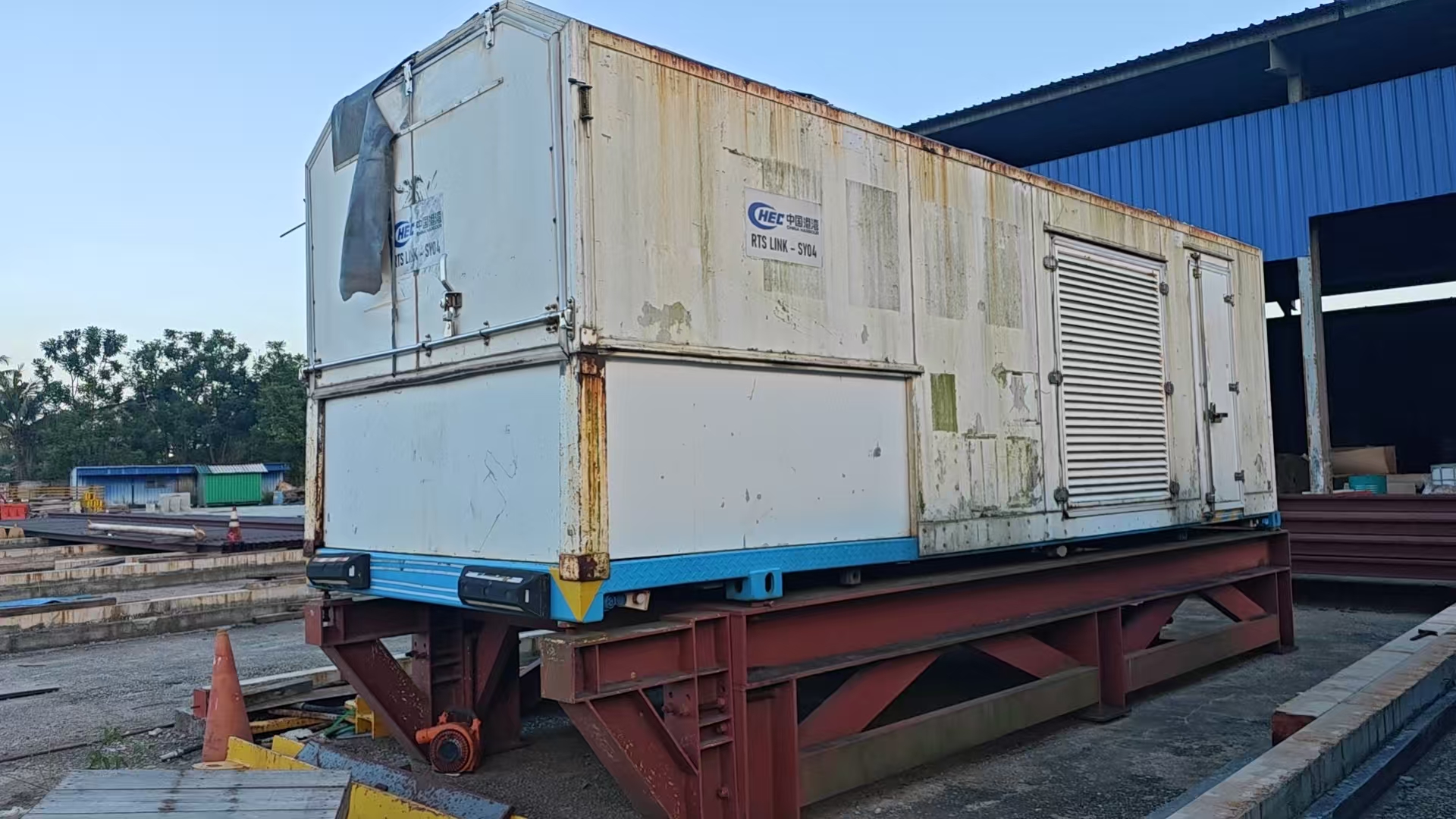

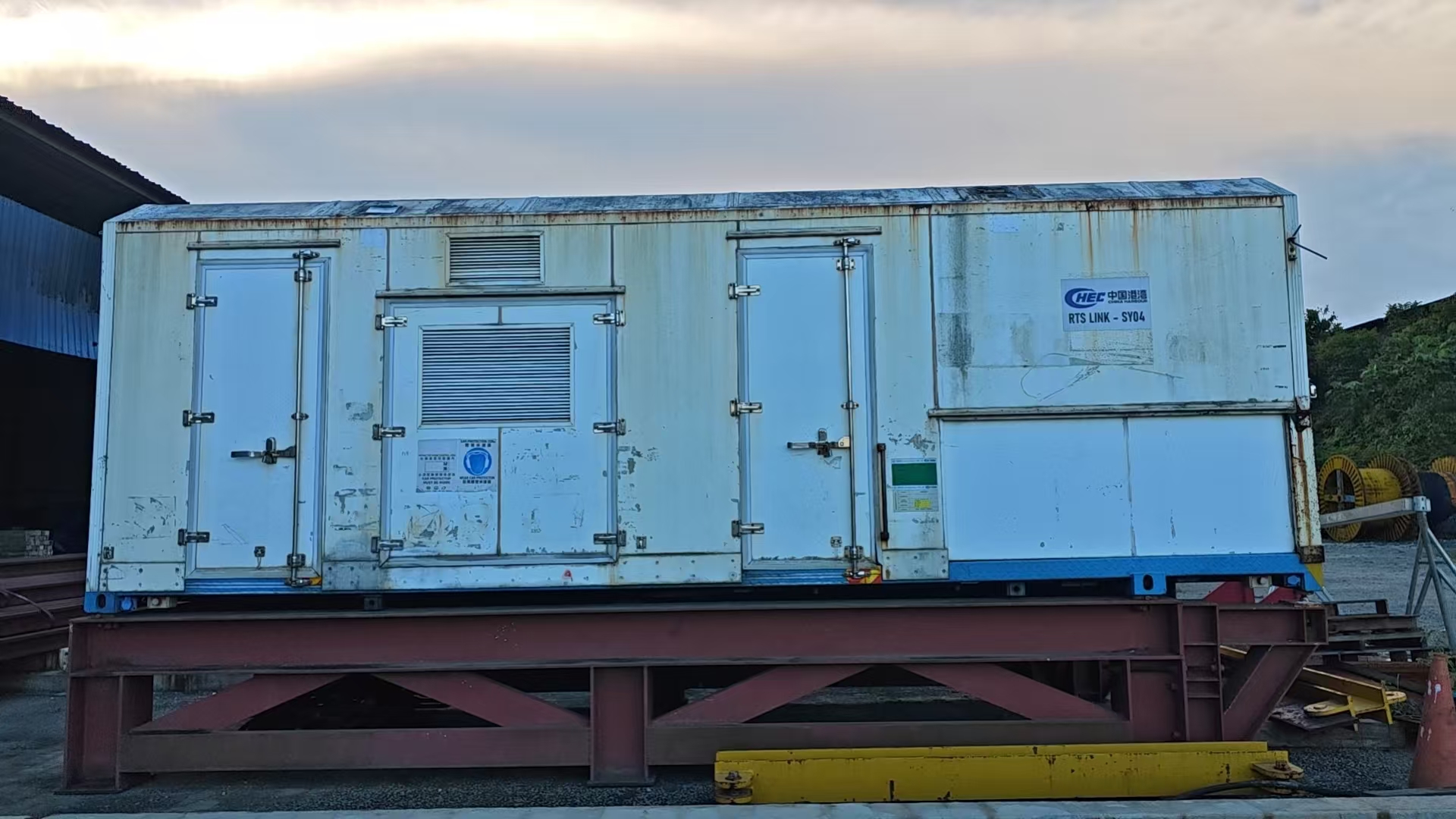

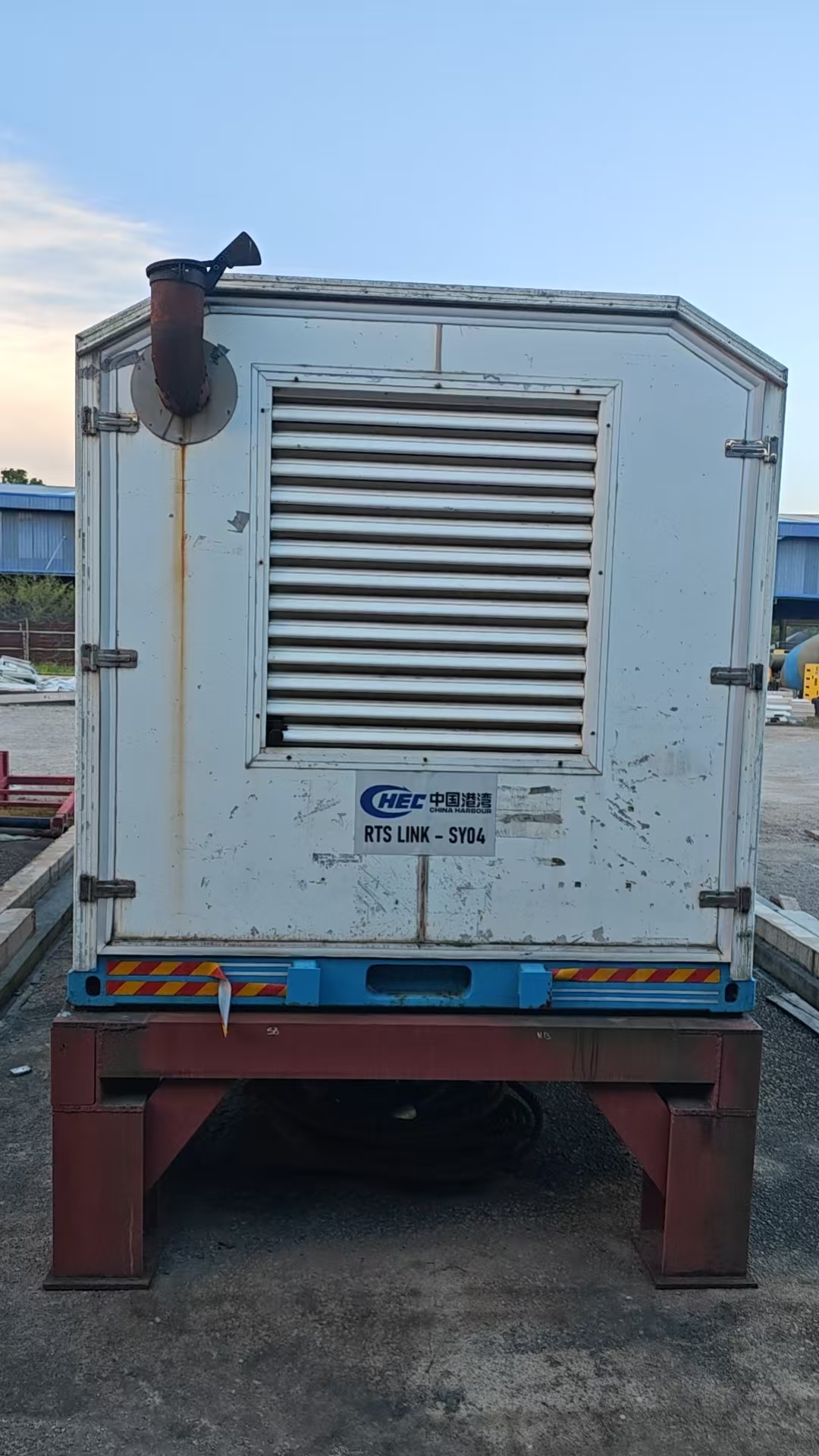

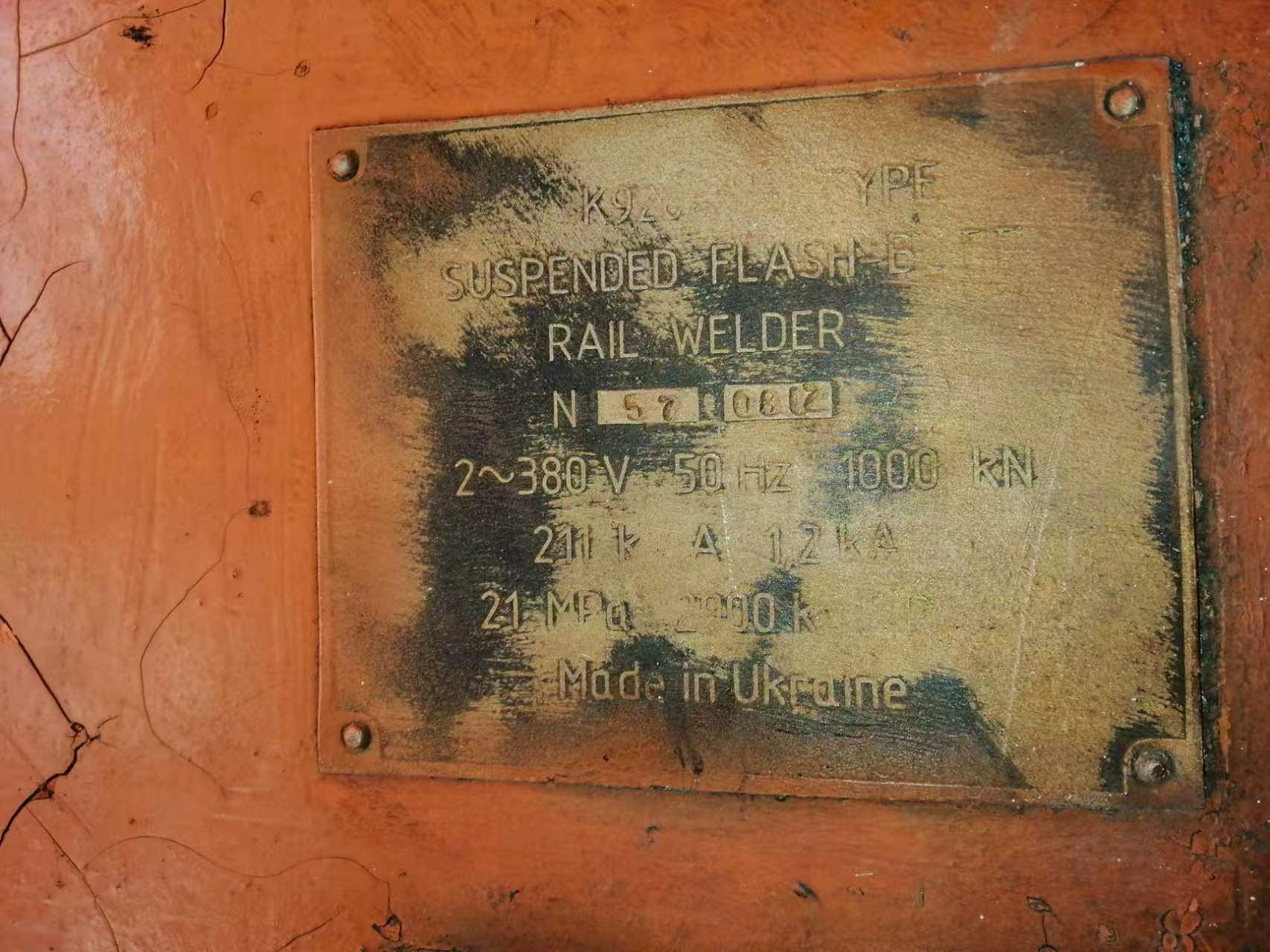

This E.O. Paton containerised suspended flash butt rail welder is equipped for production rail welding, with integrated flash removal, automatic rail alignment and weld monitoring and recording.
Key details:
• E.O. Paton K920 flash butt welding machine
• Quantity available: 1
• Perkins 2506C-E15TAG1 diesel engine
• Production rate: 12 welds/hour regular flashing; 18 welds/hour pulse process

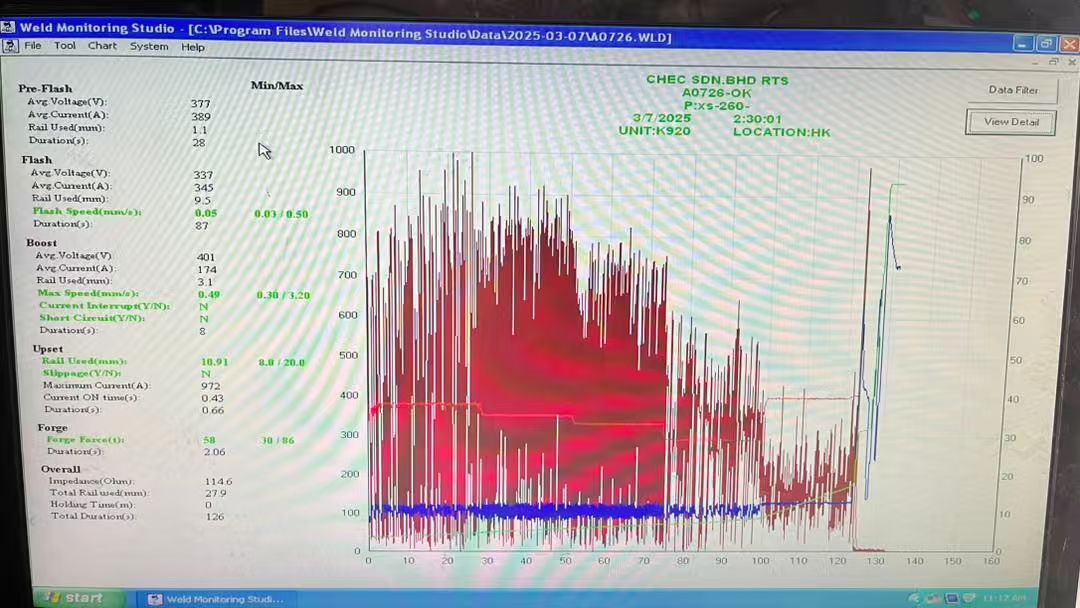

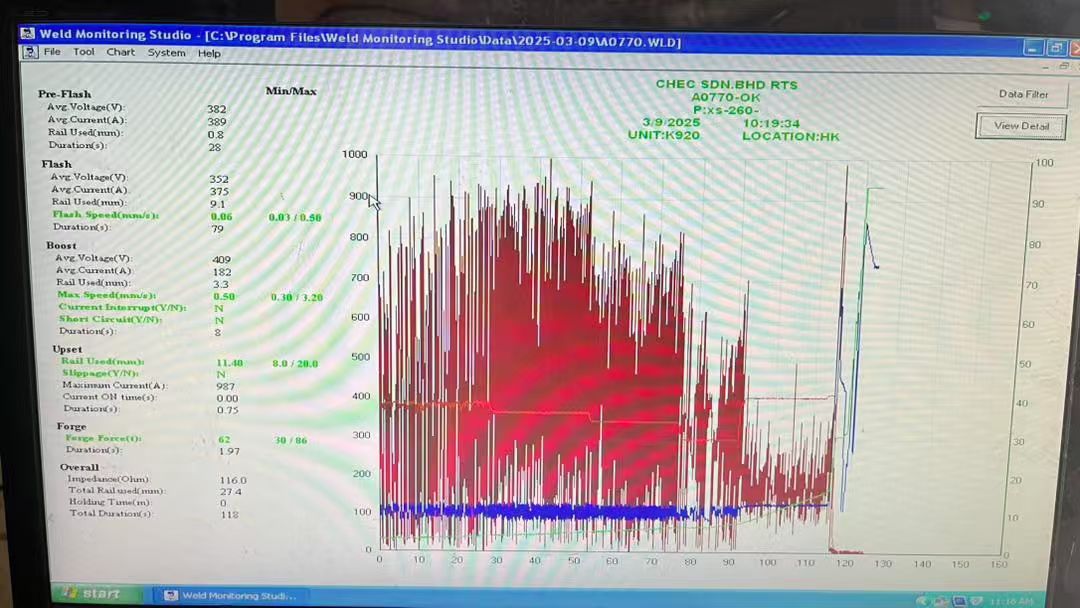

• Allen-Bradley programmable controller with WeldMonitoringStudio weld recording system
• Crane capacity: 10,000 lb at 12 ft outreach
• OEM service suggested before delivery; inspection available by arrangement
Specifications
General & Dimensions
Class
Flash butt welding machine
Builder / Manufacturer
E.O. Paton
Model
K920
Machine Type

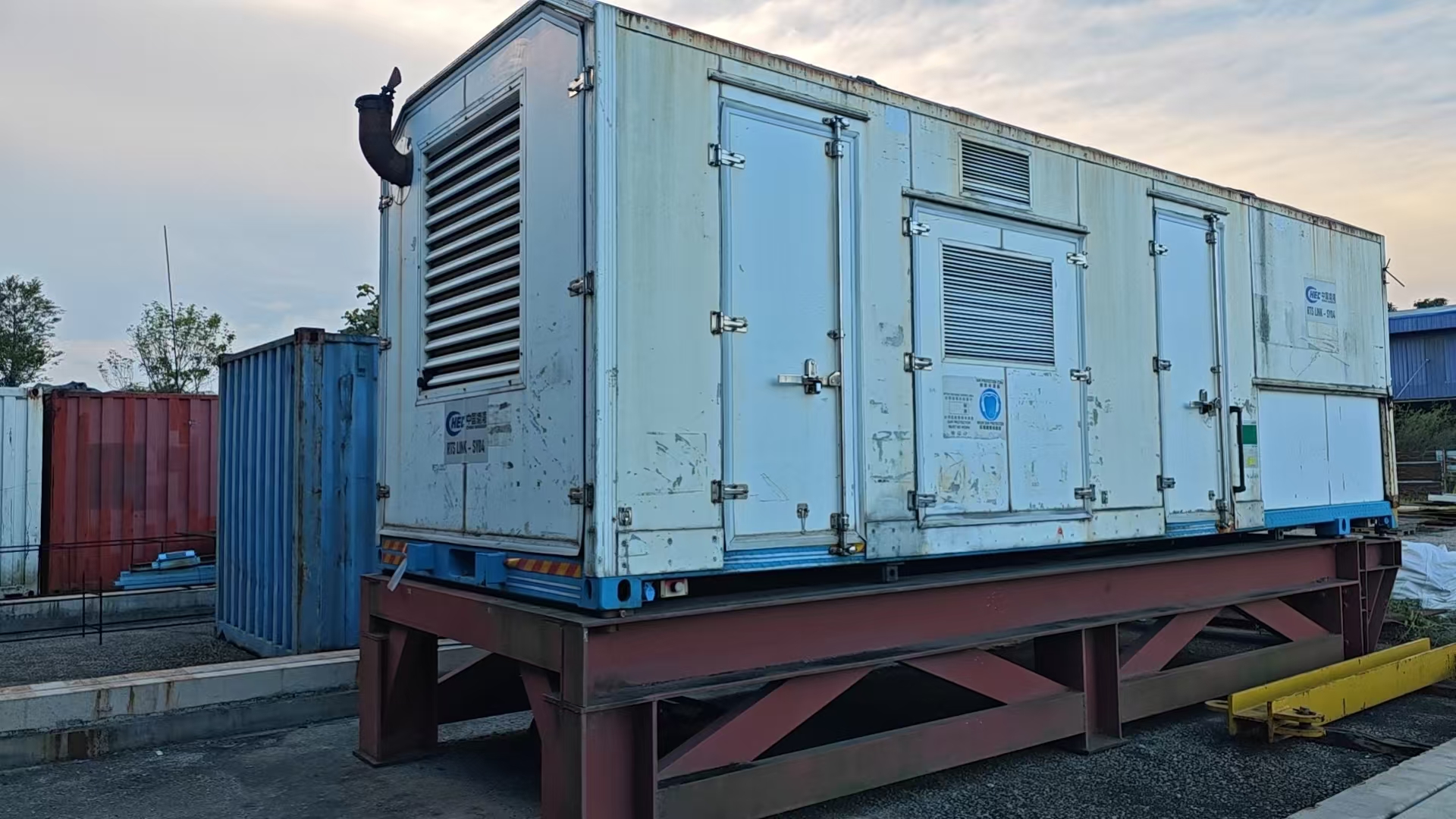

Containerised suspended flash butt rail welder
Condition
New
Quantity Available
1

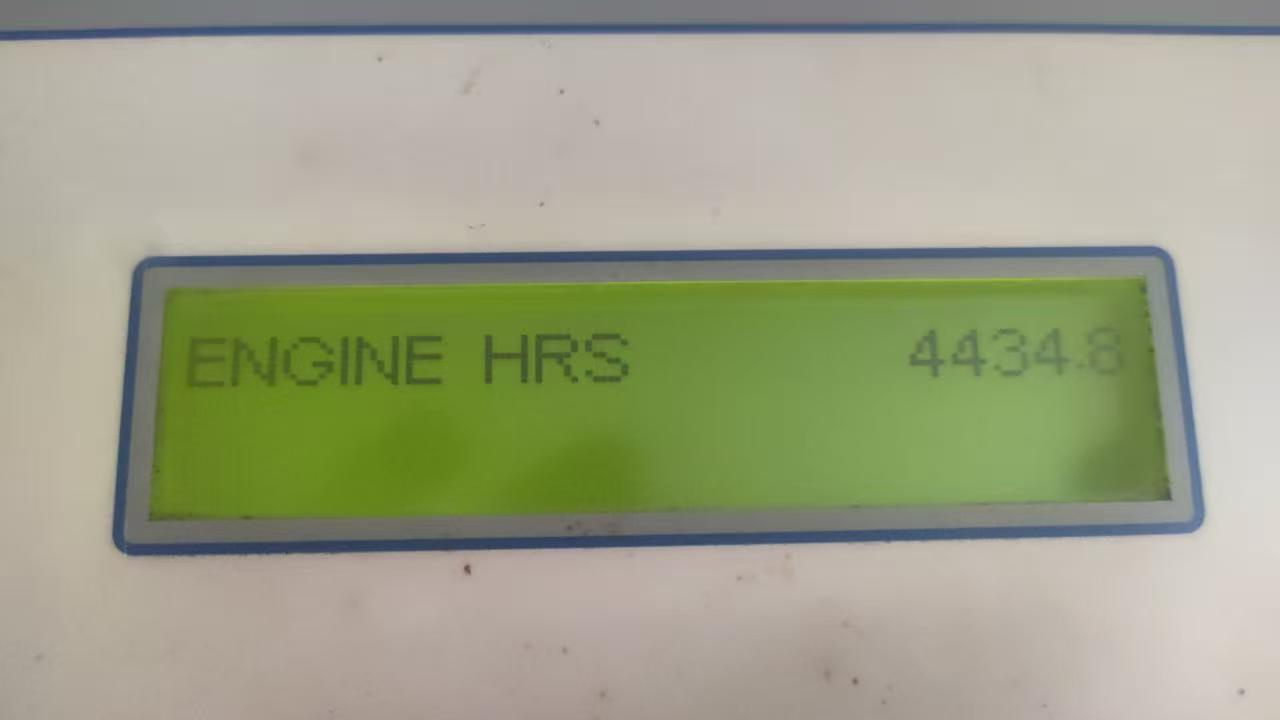

Engine Hours
4434
Operating / Service Weight
3,000 kg
Powerplant & Performance
Engine
Perkins diesel engine; 2506C-E15TAG1
Power
550 kVA standby; 440 kW standby
Working Speed
Production rate: 12 welds/hour regular flashing; 18 welds/hour pulse process
Fuel Capacity
Approximately 8 hours of operation at full load
Electrical & Mechanical Systems
Transmission
Electrically driven hydraulic pump system
Alternator

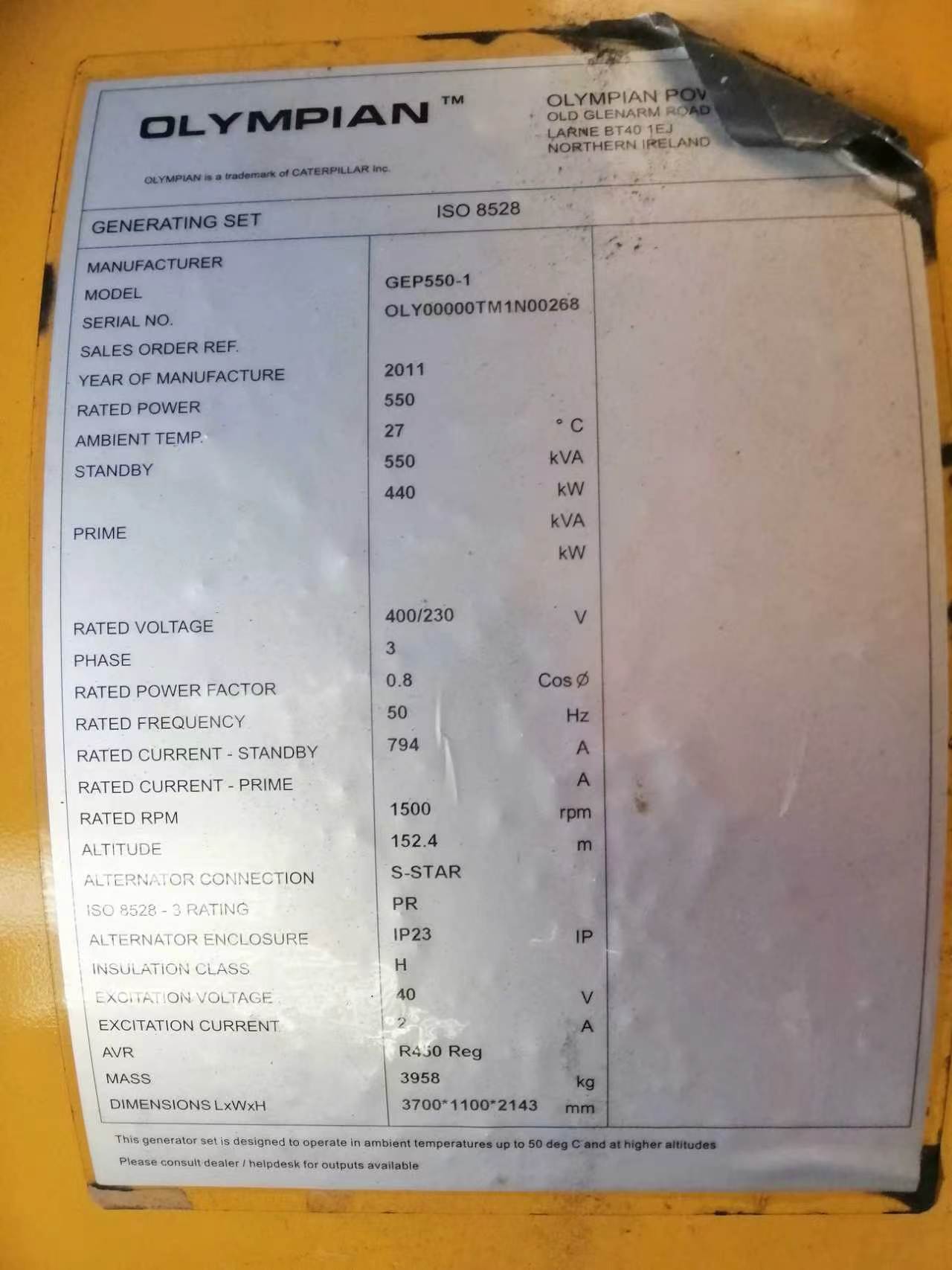

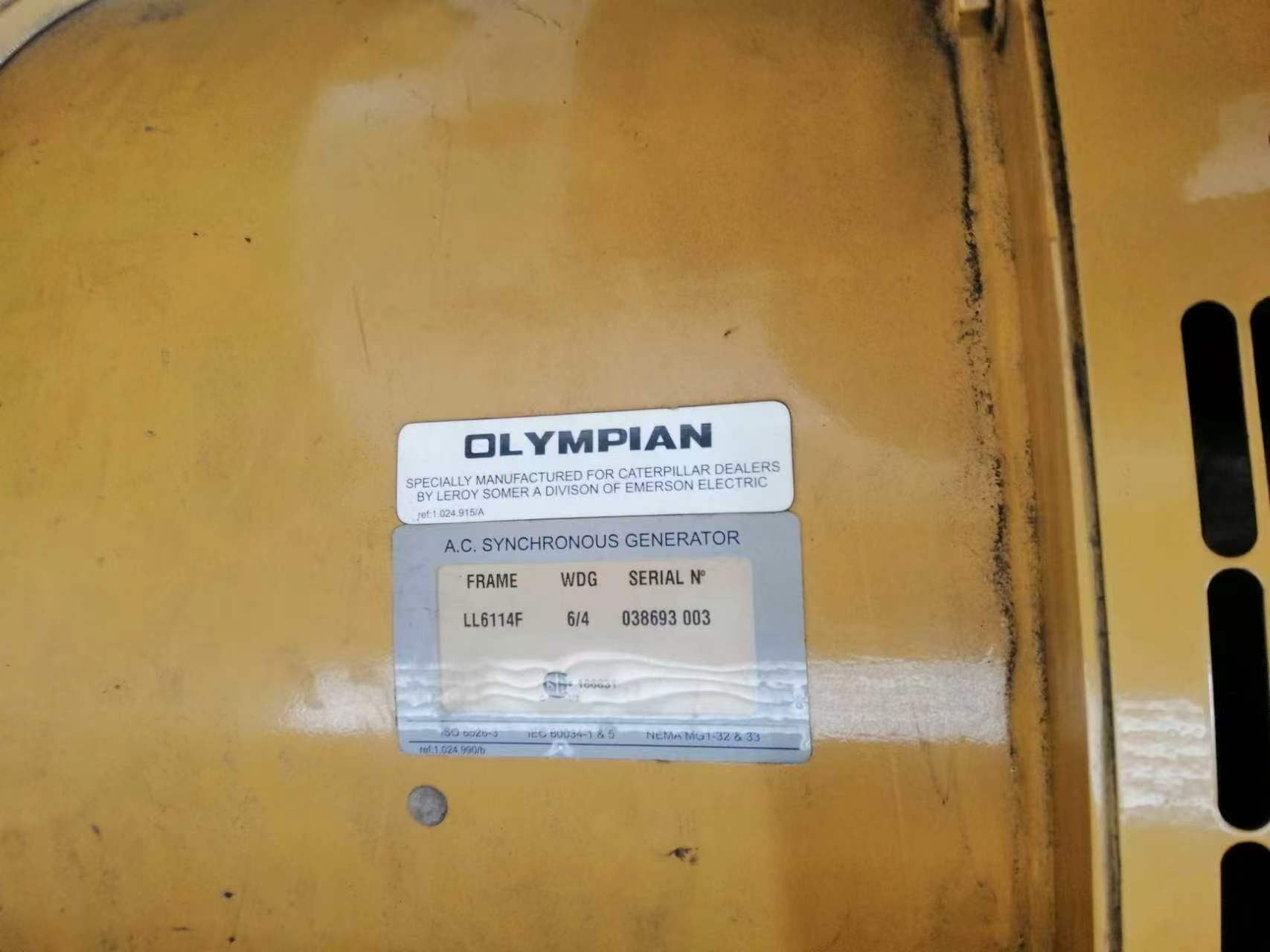

Olympian AC synchronous generator; 400/230 V, 3 phase, 50 Hz, 1500 rpm
Capacity
Hopper / Material Capacity
Weldable rail cross-section up to 12,000 mm²
Crane Capacity
10,000 lb at 12 ft outreach
Additional Details
Features
Flash resistance welding process | Integrated flash removal device | Eight welding electrodes | Two welding transformers | Automatic rail alignment | Fire-proof lined aluminium enclosure | Internal cooling system | Diesel engine generator set | Articulating boom crane | Weld monitoring and recording system | Emergency DC hydraulic pump
Service History
OEM service suggested before delivery.
Location
Inspection Available
Equipment inspection is available by arrangement
